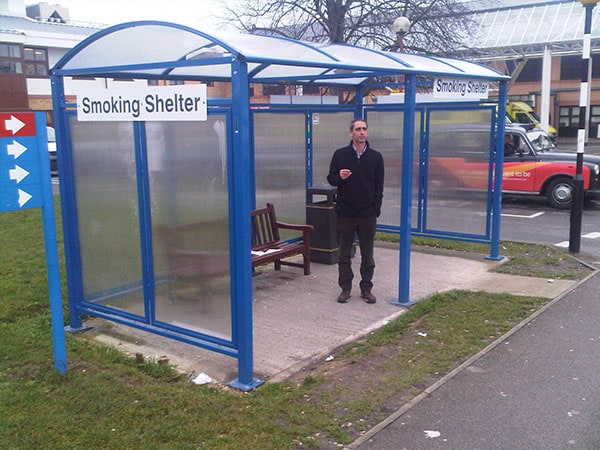

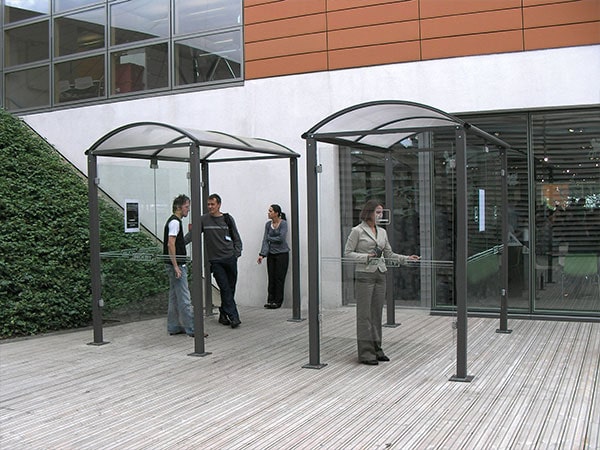

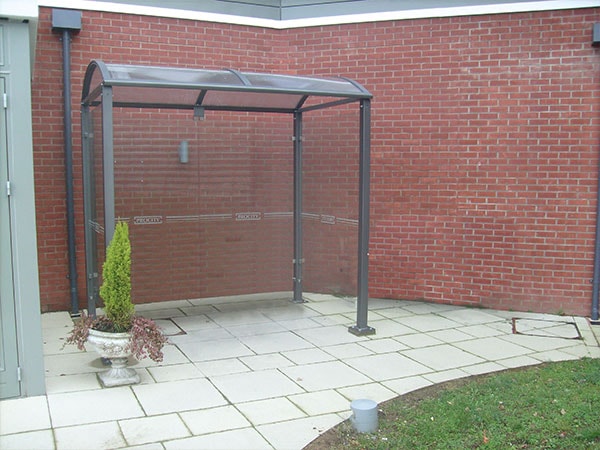

Classic Smoking Shelter

Product code: SMOK.CLA.MS

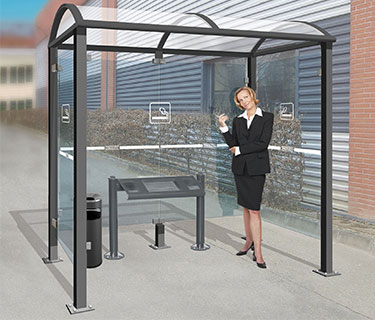

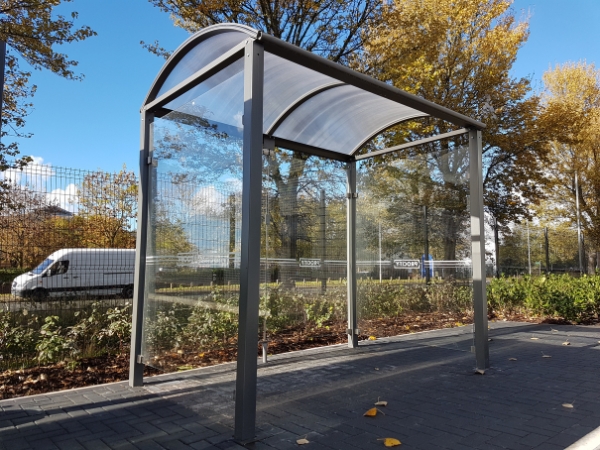

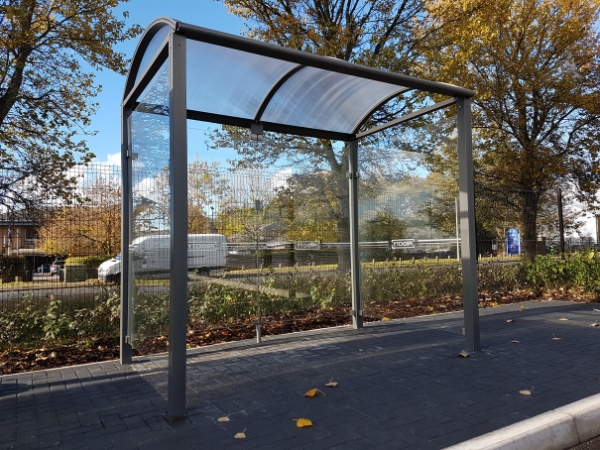

This design features a ‘barrel roof’ comprising of curved aluminum profile arcs, and 80 x 80 mm mild steel square support posts on base plates, two aluminum crossbeams 40 x 60 mm and two aluminum profile rainwater gutters. The roof is clad in 6 mm fire and impact resistant translucent cellular polycarbonate with UV protection.

Side Cladding

Toughened safety glass cladding (8mm thick) with security signage and “smoking zone” signs supplied, fixed with aluminum clamps for easy replacement in the event of vandalism. Fixed by clamping device making for easy replacement of the safety glass panels in the event of vandalism.

Finish and assembly

Galvanized steel, which can also be powder coated in a range of RAL colors. Assembly and installation instructions supplied.

Suitable for 6-8 people

Dimensions: Length: 2500 and 5000 mm (width entrance 1000 mm). Depth: 1560 mm. Height: 2680 mm.

Submerged fix or base plate fix,

Galvanised finish or powder coated in a single RAL colour

Clear or opaque PET glazing
