Disabled Access & Intercom Post

This square bollard is specifically designed for mounting various access control card readers and switches. These can be mounted either on the side of the post or on the top of the post. Powder and communication cables can be run to the switches from inside the bollard.

A optional lockable door with a piano hinge allows access when required to the readers and allows to be fitted and replaced when required. The standard lock is a tricorn type, with other locks available to special order.

The bollard can be fitted with a timber backboard inside which provides an ideal mounting point for various electrical and ancillary gear.

An access hole at the base of the bollard allows cables to pass through and an earthing bolt is supplied as standard.

Dimensions:-  Various standard bollard sections to order from

80 mm section up to 300 mm square section. Standard bollard lengths,

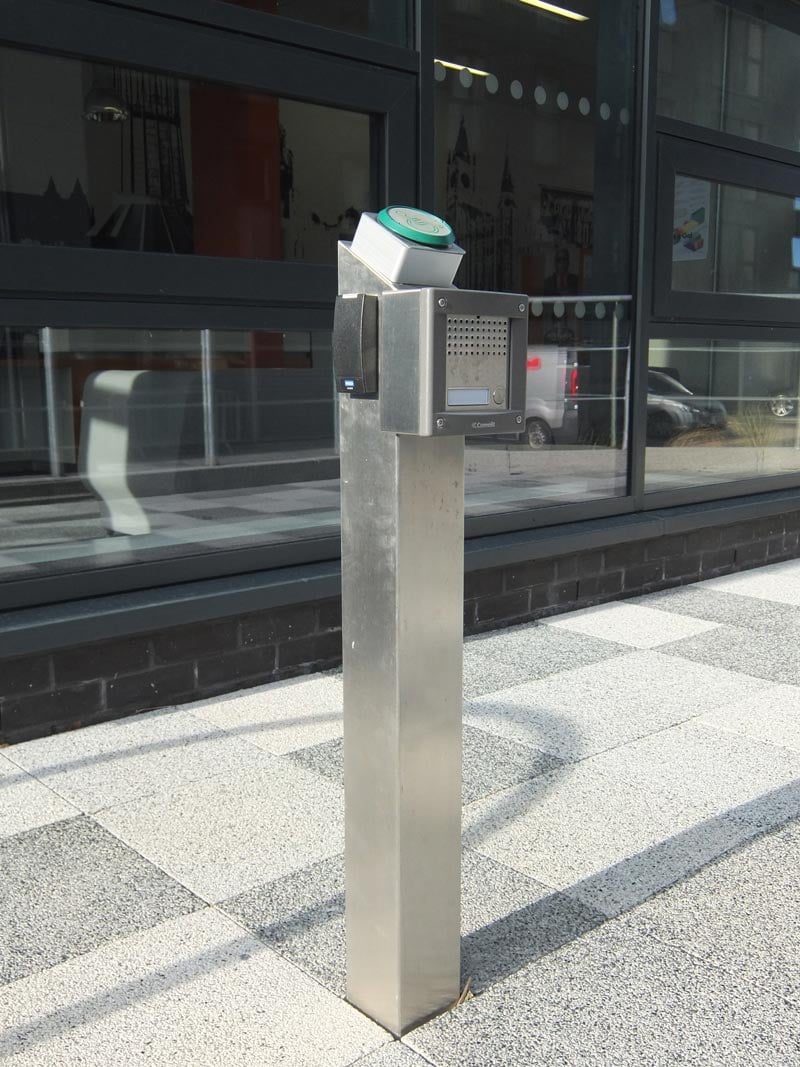

1000, 900 mm or 750mm height above ground. The Unit shown is 100 x 100 mm square section bollard with 30 degree angled top/plate. The door aperture and position can be made to customers’ requirements.

Options:  Submerged fix (root fix), base plate fix, reflective banding, available in satin or highly polished finishes. Door aperture for access, with lock.

Bollard top options:-

Flat or sloped/mitred
