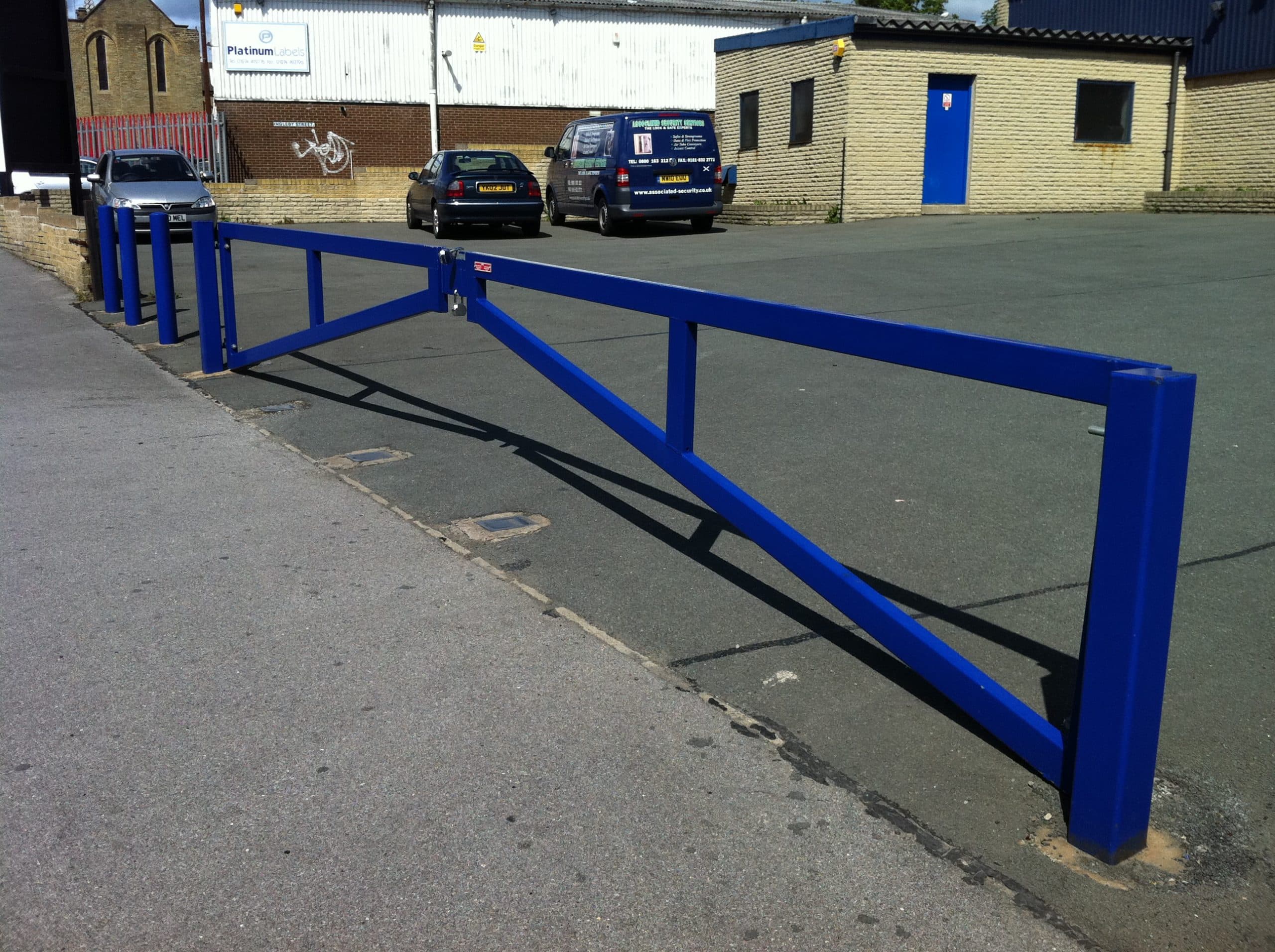

Double leaf Heavy duty manual swing gate

A robust heavy manual swing gate employed to cover large spans where a single gate is not long enough.

Specification:-

• Spans from 2 meters to 8 meters manufactured to customer own specification and requirements.
• Hot dipped galvanising to BS EN ISO 1461 (2009) as standard
• Polyester powder coating to any standard BS or RAL colour to BS EN 13438
• 100 x 100 SHS x 5 mm support post in mild steel
• 80 x 80 vertical ‘catch’ post.

Material: Gate leaf manufactured in 60 x 60 mm SHS mild steel

Height: 920 mm

Options:-

• Support posts can be either base plate fix (surface mounted) or root fix (submerged).
• Additional catch post to facilitate locking in the ‘open’ position. Recommended so that the gate can also be secured in the ‘open’ position.
• Vinyl and retro-reflective banding available in various colours and grades of material for visibility.
• Signs or logos can also be supplied and fitted if required to an integral plate
• Padlocks to ensure the gate can be locked in the open and also the locked position for safety.
• Fire bridge type padlocks, FB11 and FB14 (The emergency services have the keys for opening these in an emergency)

Product code: MSG.MS.DLG
