Fire Rated Bin Stores

The fire rated bin store is engineered to meet fire rating class ‘C’ with a mild steel frame and fire-treated timber slats, and can be manufactured to any specific dimensions or configurations to suit clients’ or project-specific requirements.

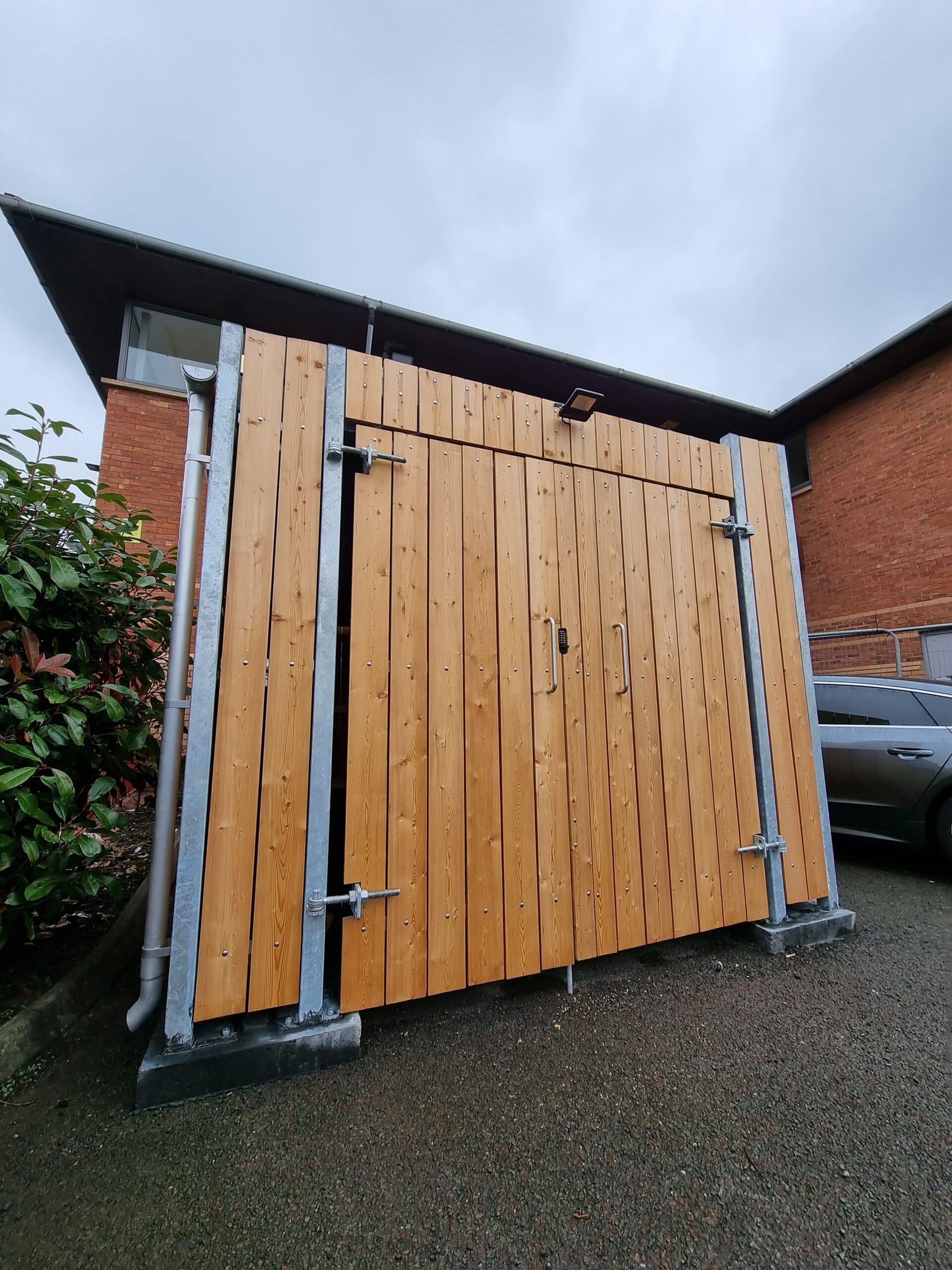

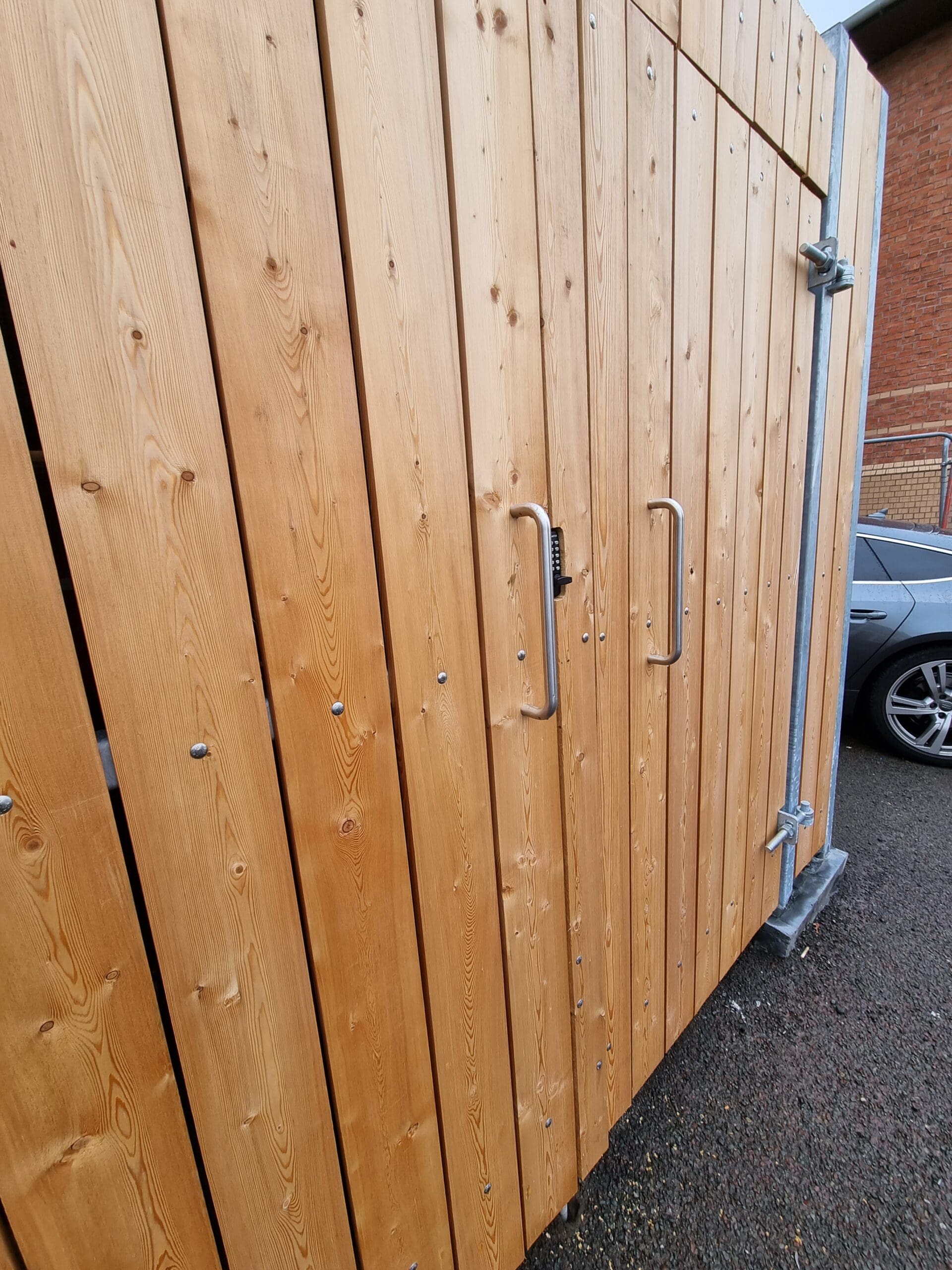

Images shown courtesy of NHS Barce Street Health Centre Walsall, featuring fire-treated slats in PEFC-certified Siberian larch.

Designed to accommodate multiple wheelie bins for various users, these fire rated bin stores are ideal for apartment complexes and social housing.

This flexible, modular design is UK manufactured, easily adaptable, and available in various configurations and sizes.

The shelter’s aesthetics make it ideally suited for rural settings, but it also blends seamlessly into urban environments, creating an attractive contrast between the timber slats and the surrounding built environment.

Offering a complete secure bin store compound solution, these fire rated bin stores are ideal for schools, university campuses, commercial kitchens, restaurants, and office blocks.

The bin store can be designed as either ‘open’ or a secure compound with controlled access via lockable gates secured by a mechanical keypad or padlock fix.

This store design is available with an optional roof in various materials upon request.

Product Code: BINST.FRBS

Dimensions:

The unit illustrated is 2576 mm in height, 3000 mm wide, and 4800 mm deep, with an R32 corrugated metal roof and clad in Siberian larch. Width and length can be customised to suit individual project and storage requirements.

Lock Mechanism:

Locinox ‘Vinci’ mechanical code lock available in black or silver, or padlock fix.

Timber Cladding Options – Species treated with less than 18% moisture content.

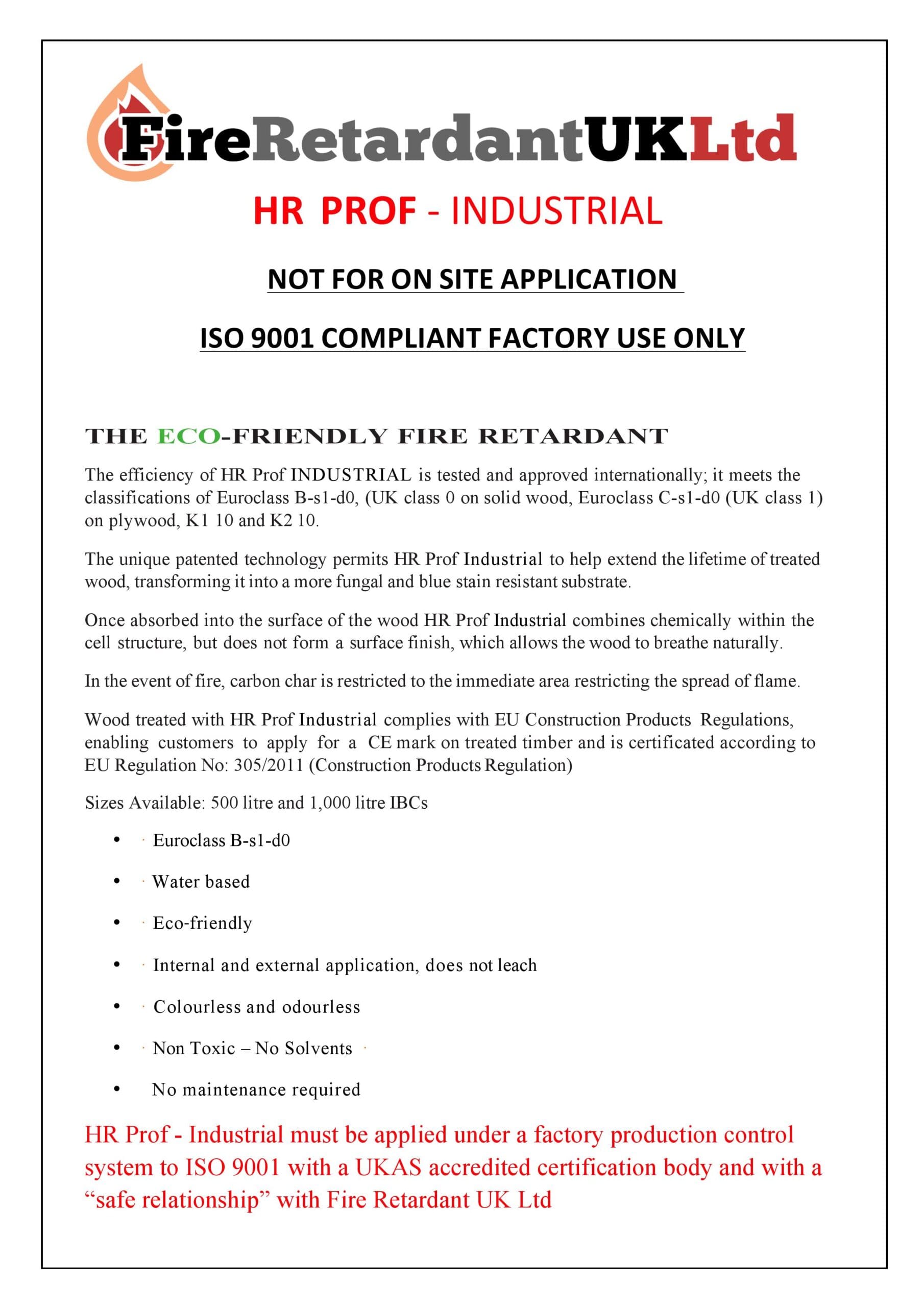

All timbers can be fire treated as long as they accept the required fluid uptake to achieve the Euroclass B stamp. We also provide compatible coatings to apply to the FR treated boards once the FR element side has fully cured.

Typical Timber Species That Can Be Fire Treated:

• Spruce
• Birch
• Pine
• Sucupira Amarela
• Siberian Larch
• Scottish Larch
• Western Red Cedar
• European Oak
• Thermowood & various heat-treated species
• Iroko

Cladding and Structure:

Typically 18 mm thickness x 144 mm vertical boards (image shows bin store clad in Siberian larch).

Mild steel support frame structure hot-dip galvanised to BS EN ISO 1461:2009 for maximum corrosion resistance, which can also be powder coated in a RAL colour to match corporate colour schemes if required.

The shelter can be designed to be either ‘open’ or secure with a gate.

All timber is either PEFC or FSC certified and felled in the UK where possible.

Vertical timber clad double leaf security gates with hasp and staple locking mechanisms.

Submerged ground fixing with base plate.

Hollow section end frames and purlins.

Assembled with high strength bolts on site, supplied ready for assembly on site.

Supplied ‘flat pack’ complete with all required ironmongery and assembly bolts for site installation.

Options:

• Various timber cladding species suitable for fire treatment.
• Bespoke versions available to suit individual site requirements and dimensions.
• Secure compound design available with either swinging or sliding gate.
• Vertical or horizontal cladding timbers.
• Vertical timber clad double leaf security gates with hasp and staple locking mechanisms.
• Mechanical, coded lock or padlock fix.
• Submerged ground fixing with base plate.
• Internal lighting.
• Gutter systems.

Full installation service available UK wide by fully trained site installers, with a full site survey service available upon request.

By choosing our fire rated bin stores, you ensure a secure, aesthetically pleasing, and adaptable solution for your waste management needs.
