Fylde Waiting Shelter

Product code: WASH.FYL.MS

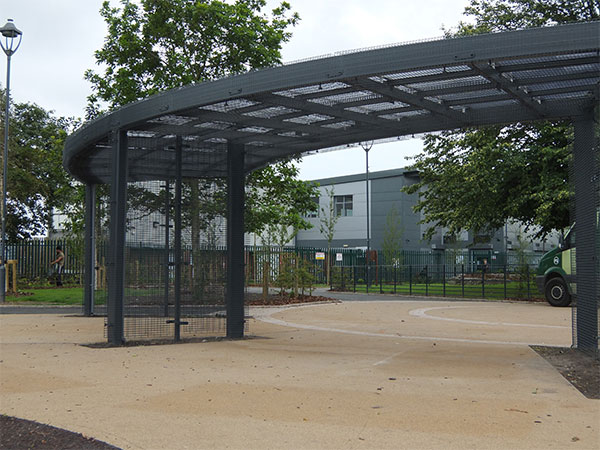

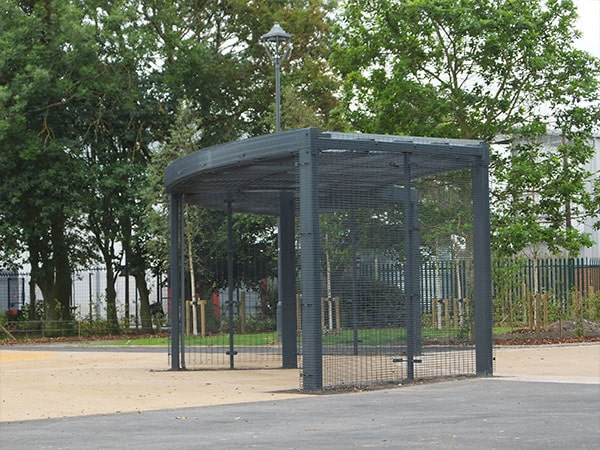

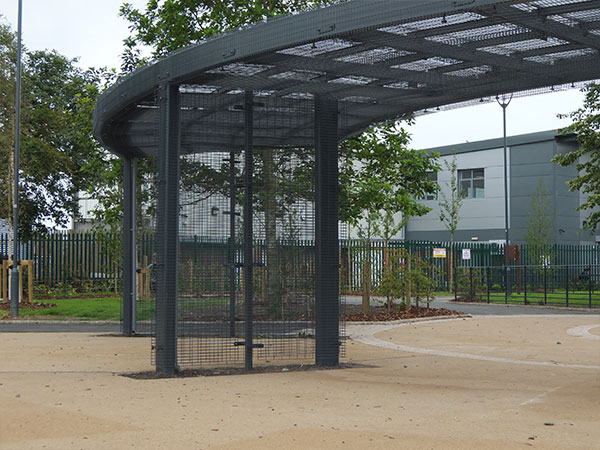

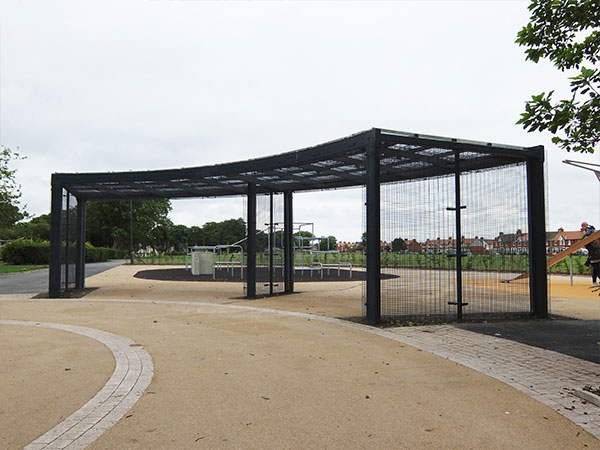

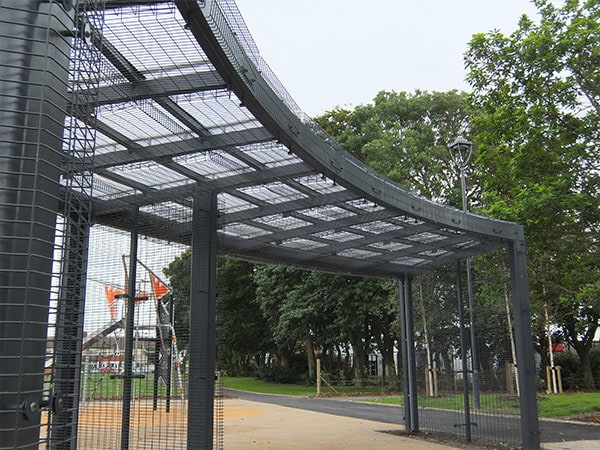

This striking bespoke curved shelter was specifically designed for public use in municipal areas, featuring off set 75 mm x 25 mm x 3 mm external mesh cladding cages designed to support most climbing plant species such as ivy and Virginia creeper.

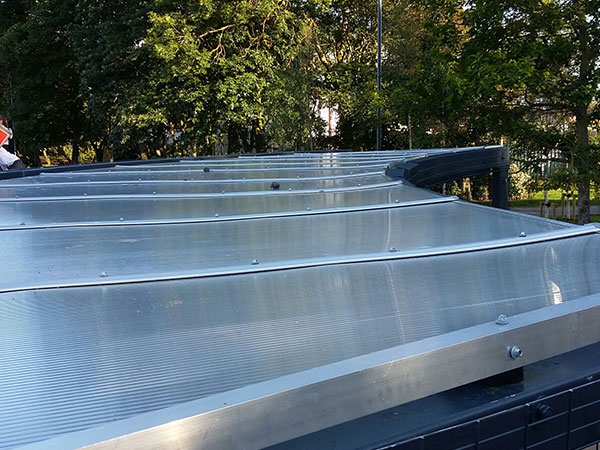

Twin wall polycarbonate 10 mm clear roof system with an integral ‘hidden’ gutter tray system which supports and waters the climbing vegetation and plants below. This shelter design can be adapted to suit your own specific project requirements and manufactured to in various configurations and finished in any standard RAL colour, please contact our sales department for more information.

Finish and assembly:

200 x 100 mm RHS supports posts, 200 x 100 mm curved beams

100x 100 mm, 100 x 50 intermediate beams purlins

50 x 50 SHS end post

Hot dipped galvanized and powder coated in RAL7016

Gutter system

Dimensions: Highest 2600 mm

Width 10815 mm at rear

Width at front 6976 mm

Depth 2760 mm

Options:–

Powder Coated in a choice of RAL Colours.
