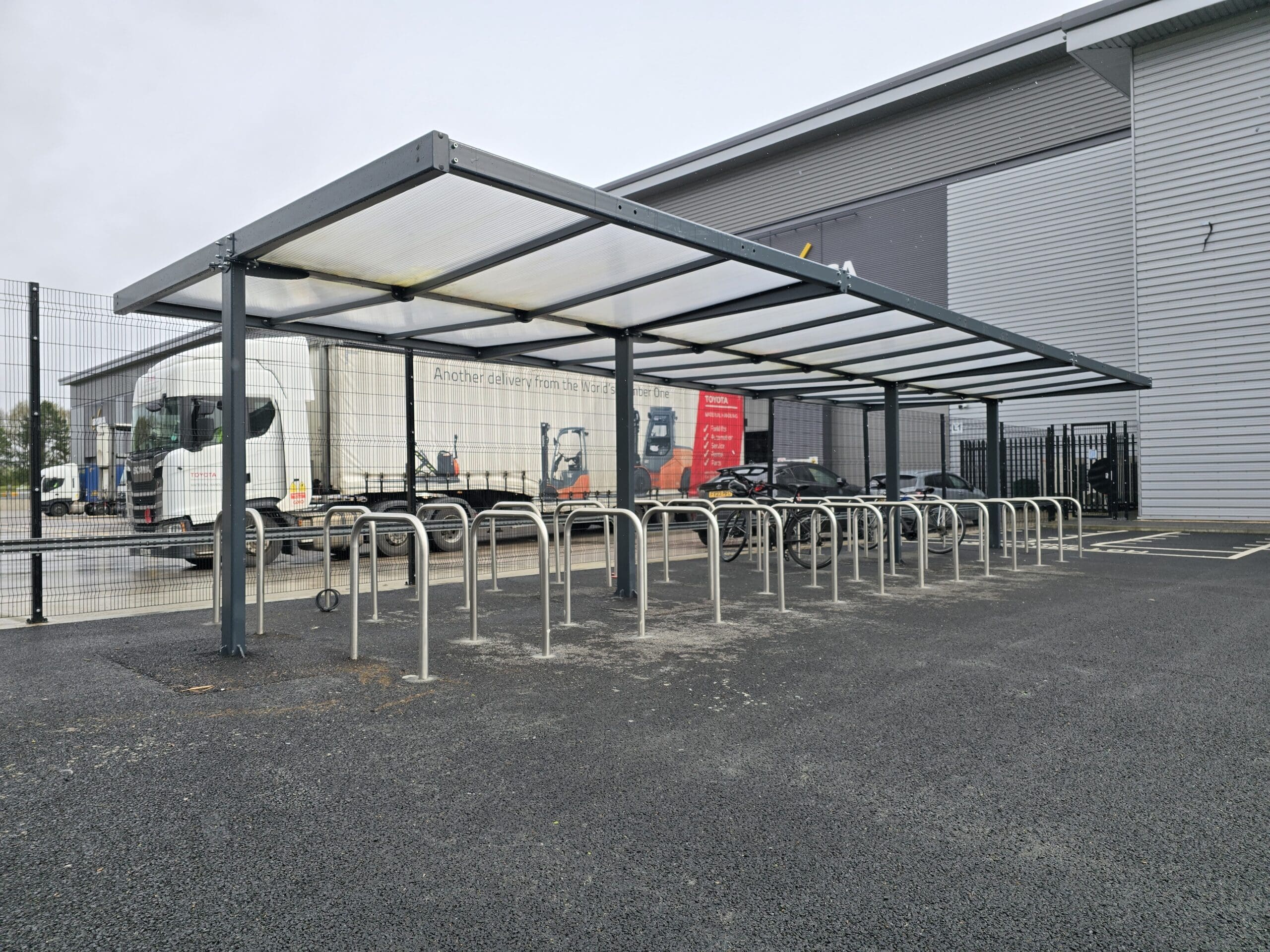

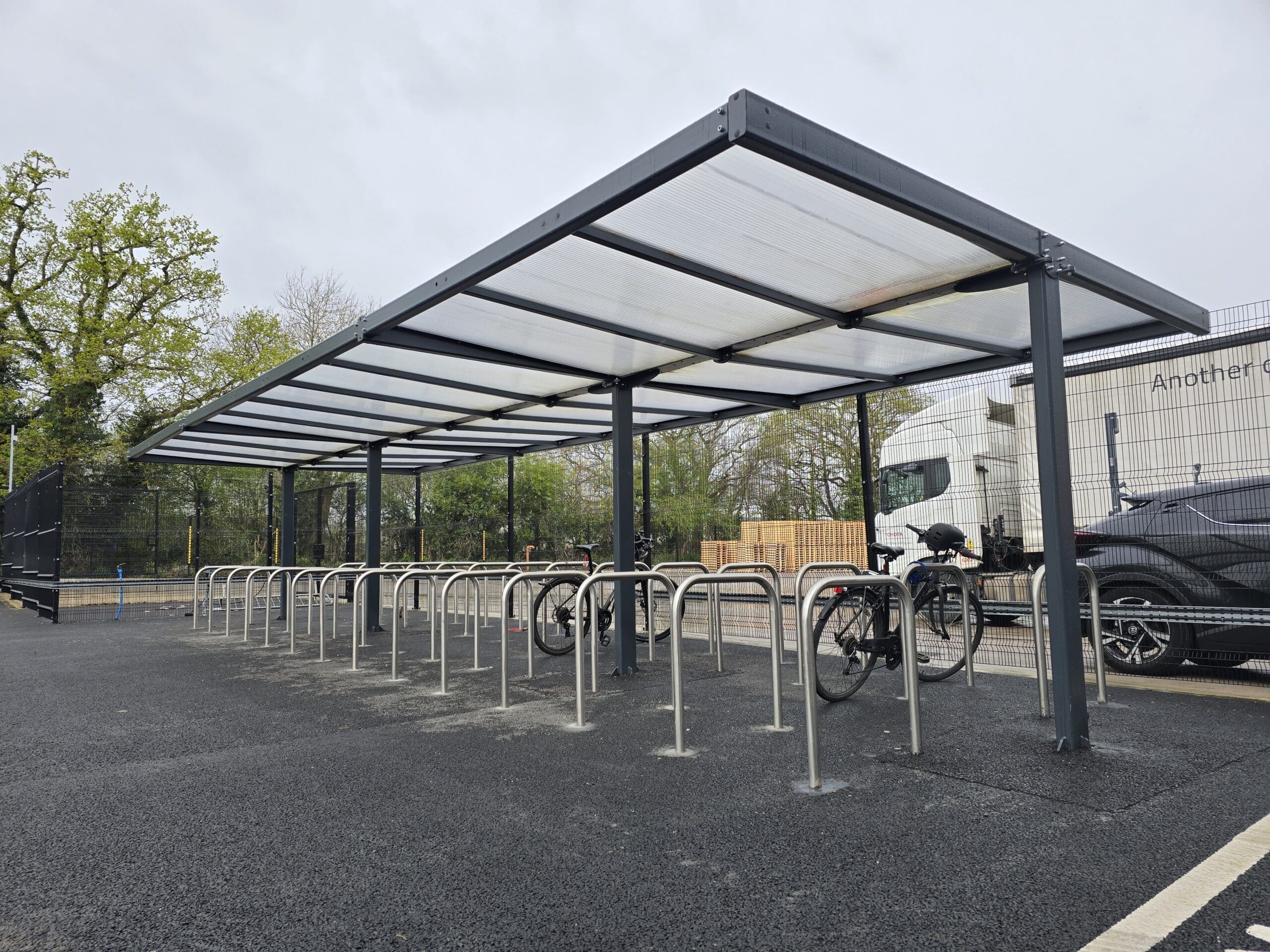

Gullwing Cycle Shelter

The Gullwing cycle shelter can accommodate up to 24 cycles at 4100 mm length, however its modular design facilitates banks of shelters to be formed which can accommodate cycles which can be approached from both sides of the shelter.

It is a robust free standing cantilever structure with unobtrusive central supports which contain ‘concealed’ integral gutter down pipes which enabling water to be discharged at ground level or alternatively connected to an underground drainage system.

The shelter roof can be supplied with either is R32 type profile corrugated metal cladding available in a range of colours or clear PET ‘twin wall’ PET plastic to allow light into the structure.

Most cycle stands and racks can be installed inside this shelter design.

Construction:

• 160 x 80 mm RHS Strong box section uprights
• 100 x 100 mm SHS Roof beams
• Supplied in ‘flat pack form for assembly on site with anti-tamper, high strength bolts
• Hot dipped galvanised to BS EN ISO 1461: 2009

Dimensions:

Height 2230 mm to underside, 4180 mm width

Standard lengths 3600 mm, 4100, 5000 mm length, with alternative lengths made to order

Options:

• Range of cycle storage racks and stands
• Twin wall polycarbonate roof
• Corrugated Trapezoidal steel roof cladding, (R32 HPS 200 ColourCoat profile) which is available in a range of standard colours
• Multiple banks to increase storage capacity
• Shelter can be made to BREEAM standards
• Steel framework can be polyester powder coated in most standard RAL colours
• Internal lighting
• Full installation service available UK wide by fully trained and accredited installers with a full site survey service available
