Highways Bollard

Product code: MS.RDBOL.HWB

Highways bollard which complies with highways regulations.

Compatible with diagram 561 of the Traffic Signs Manual, Chapter 4, 2004

and conforms to the Traffic Signs Manual, Chapter 4, 2004 (Warning Signs).

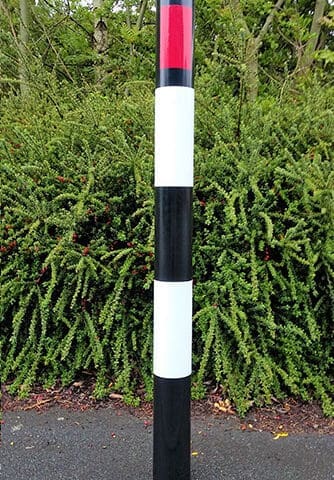

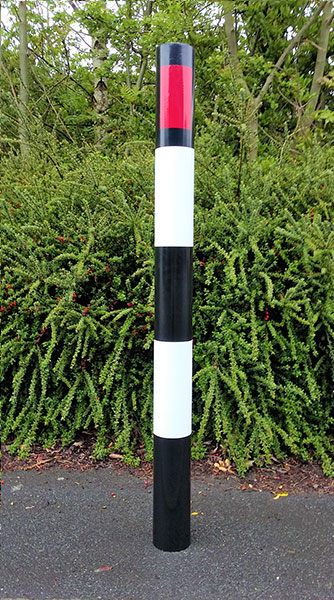

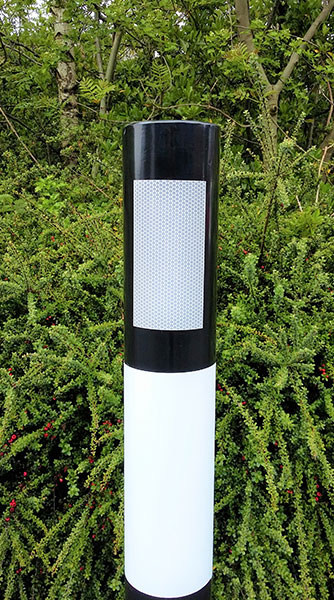

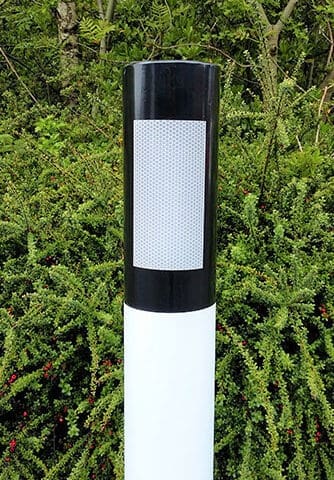

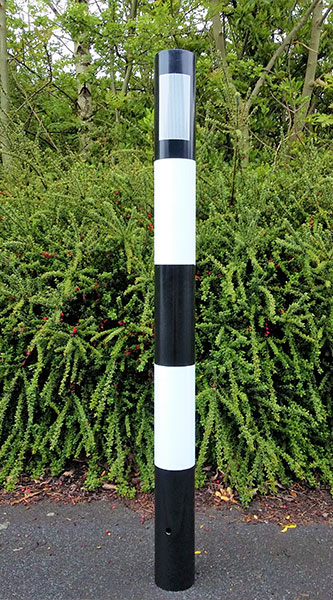

Has a single class 2 (diamond grade) retro-reflective sticker in red and one in white and twin plain vinyl white contrast bands. Please contact our sales department for more information on banding options and types available. This bollard is available in various diameters and overall lengths/heights above ground.

Bollard top options: –

Flat, semi dome, high dome, sloped angled/mitred top

Dimensions: –

Various standard bollard diameters to order from 76 mm diameter up to 300 mm diameter.

76, 90,101, 114, 127, 140, 150, 168, 193, 220, 245, 273 and 323 mm

Standard bollard lengths: –

1000 mm, 900 mm or 750mm heights above ground or made to client’s specification

Options: –

Polyester powder coated in a range of standard B.S and RAL colours

Reflective banding, or plain vinyl bands in a range of standard colours

Turned rebates in bollard for reflective banding to be set into

Loose cap with ‘J’ tang to allow for concrete filling bollard on site

Hot dip galvanising to BS EN ISO 1461:2009 for maximum corrosion resistance
