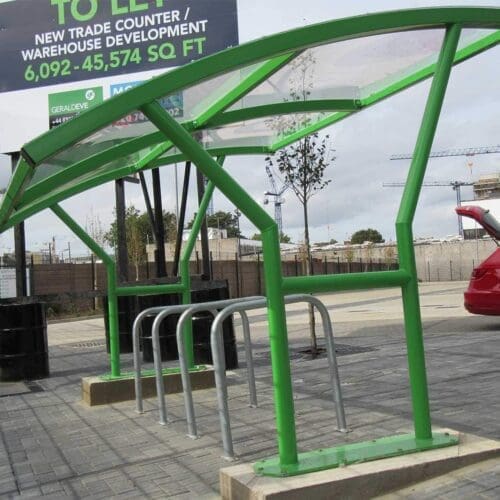

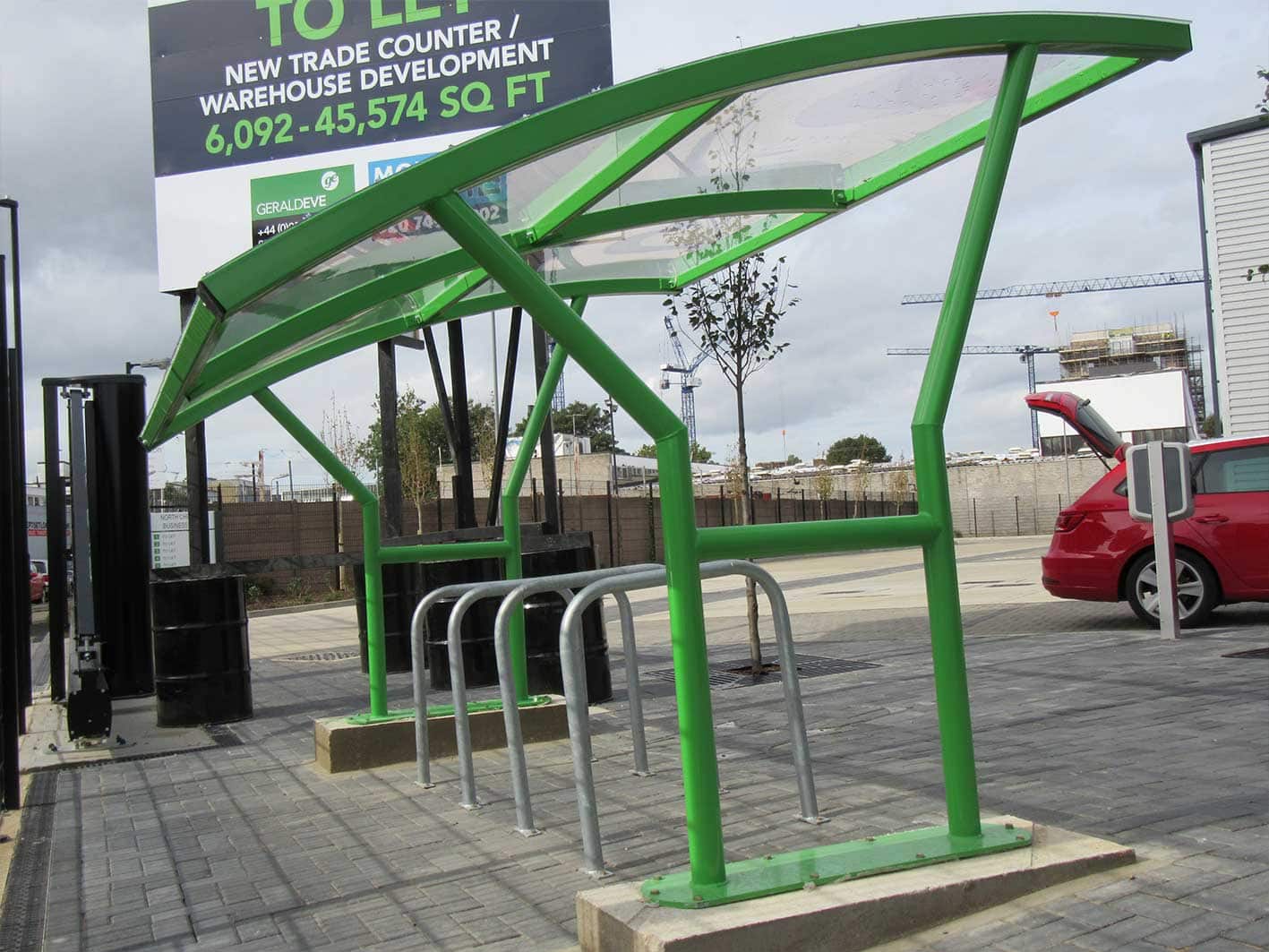

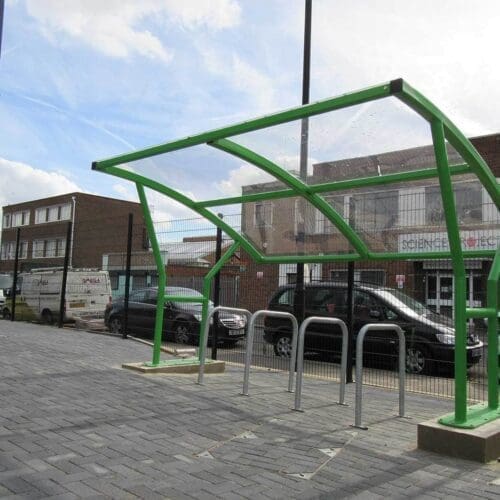

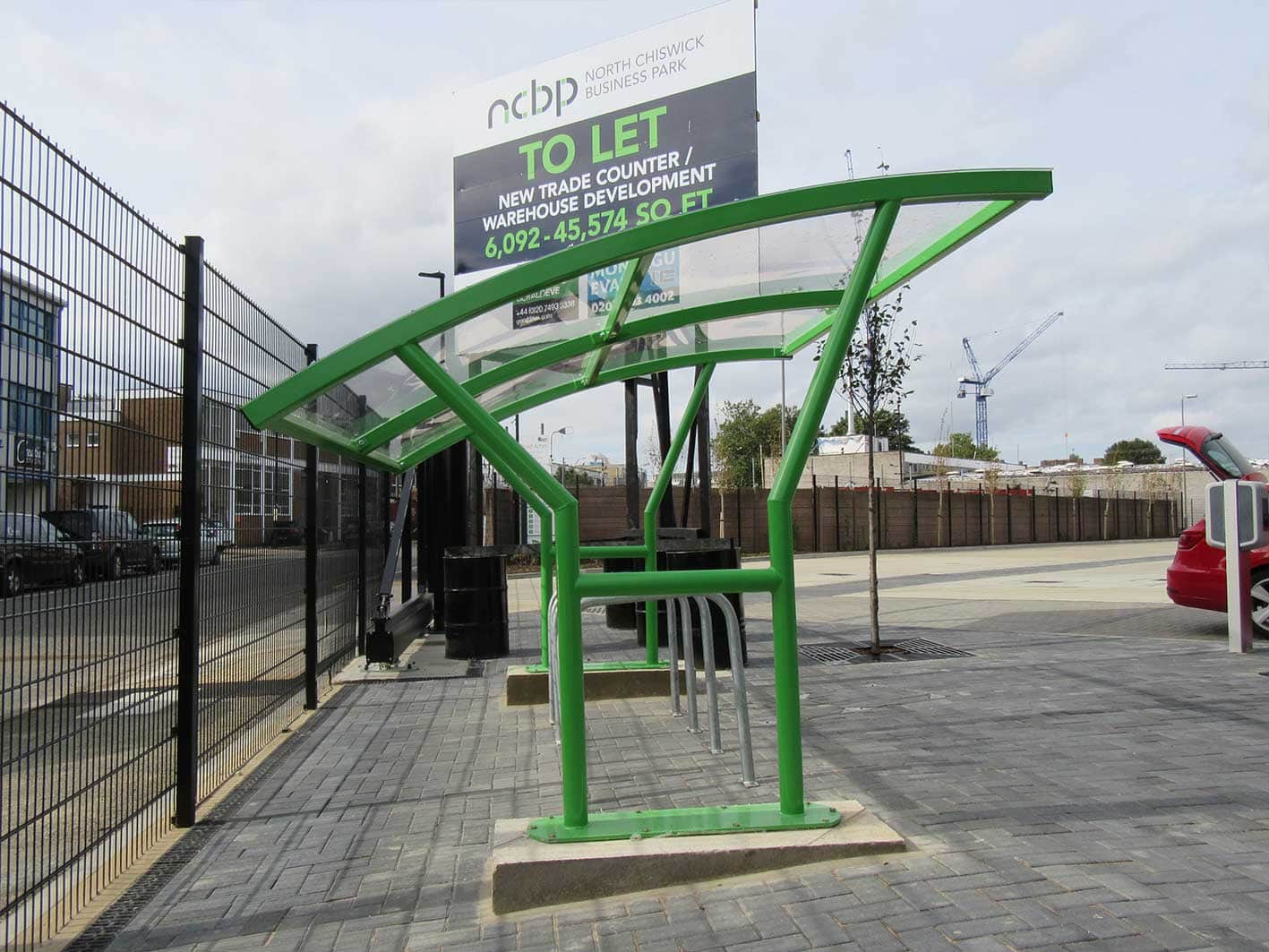

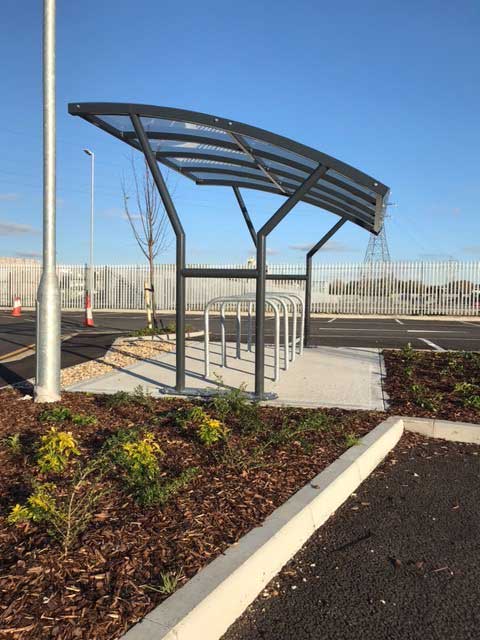

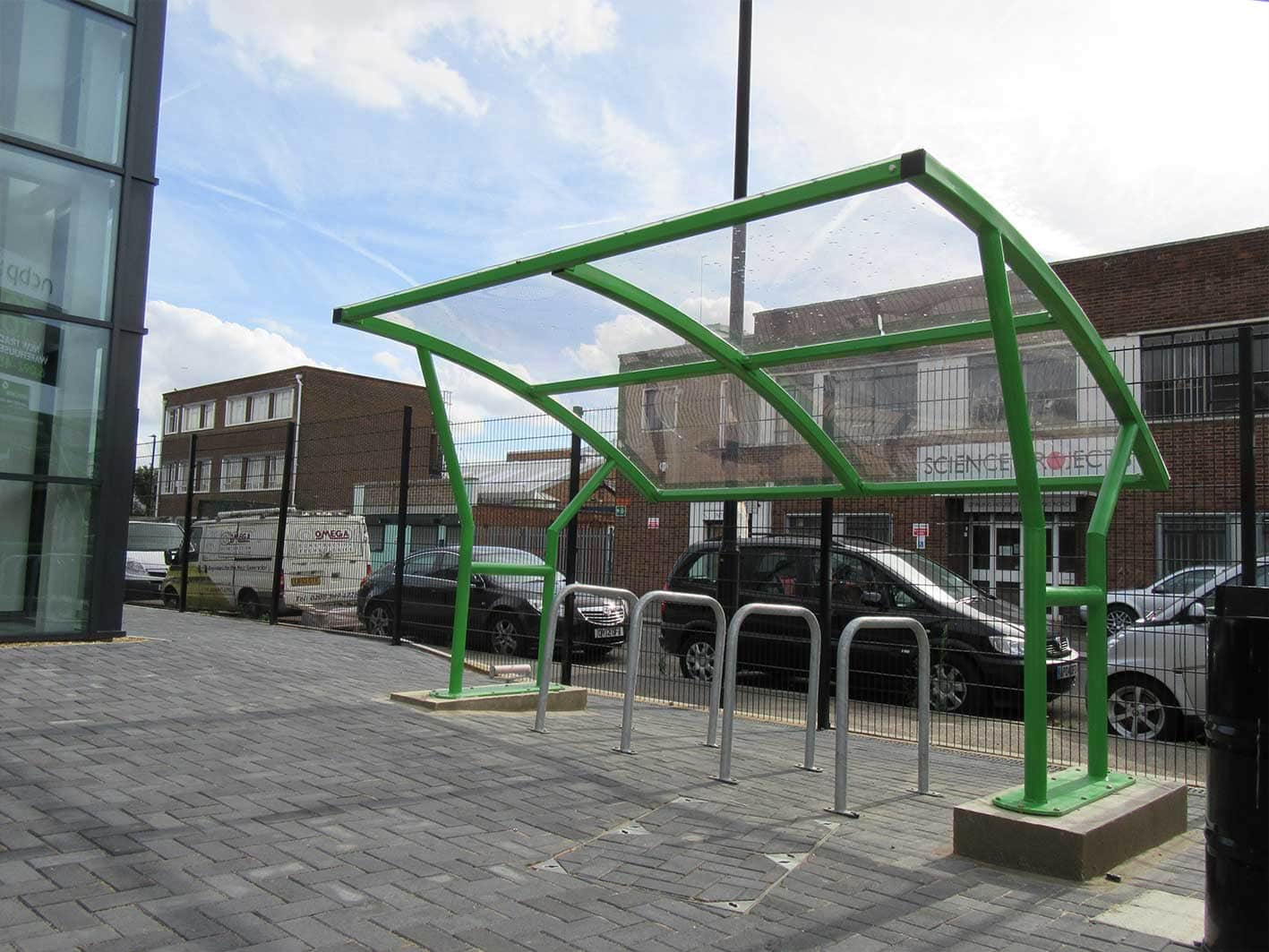

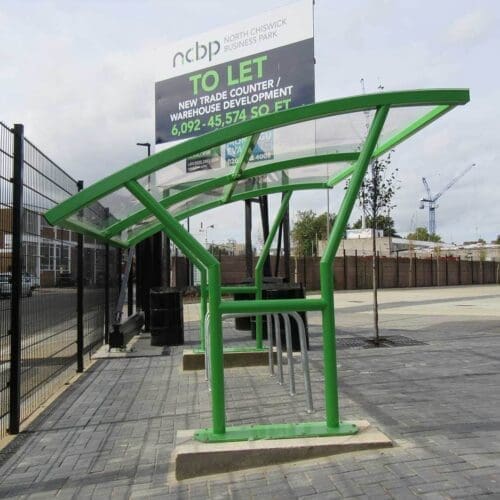

London Cycle Shelter

The London is a modern asymmetrical design featuring heavy duty splayed support struts with dramatic curves to create a dynamic contemporary structure. The sweeping lines of the anti-climb frame design blends well in most urban streetscapes.

This robust modular design can be clad with either PETG glazing to the load bearing roof purlins in clear, opaque or bronze or a corrugated metal roof cladding profile in the Colourcoat HPS200 range of standard colours and profiles.

Offering protection and storage for typically 10 cycles it’s ideally suited to schools, colleges, universities and commercial office blocks alike.

The heavy duty steel frame features robust 1000 mm x 250 mm base plates for superior ground anchorage. Most cycle stands and racks can be installed inside this shelter design.

Construction:

Welded twin end frame assembly featuring twin splayed 76 mm dia. CHS supports with  80 * 80 mm SHS mm strong box section, 60 * 60 mm SHS roof purlins all supplied in ‘flat pack’ form for assembly on site with anti-tamper, high strength bolts

Hot dipped galvanised to BS EN ISO 1461: 2009 as standard.

Dimensions:- Height 2445 mm (front) 1640 mm (rear) width 2680 mm

Standard lengths 3600 mm, 4100, 5100 mm length, with alternative lengths and configurations made to order

Options:-

PETG glazing to roof/back in clear, opaque or bronze

Corrugated metal roof cladding, Colourcoat HPS200 profile in a range of standard colours

Shelter can be configured to BREEAM standards

Steel framework can be polyester powder coated in most standard RAL colours

Internal lighting

Full installation service available UK wide by fully trained and accredited installers with a full site survey service available
