Lux Heavy Duty Barrier

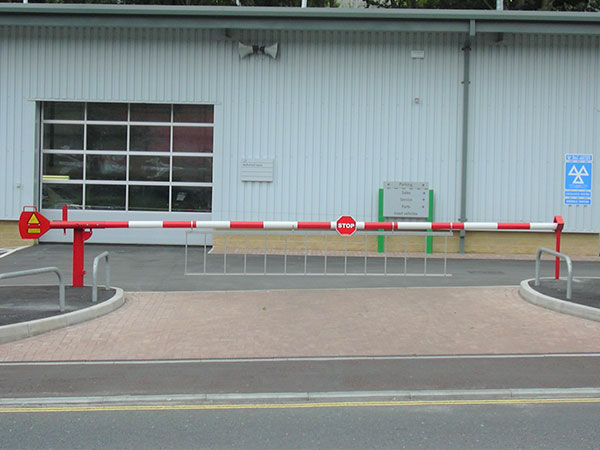

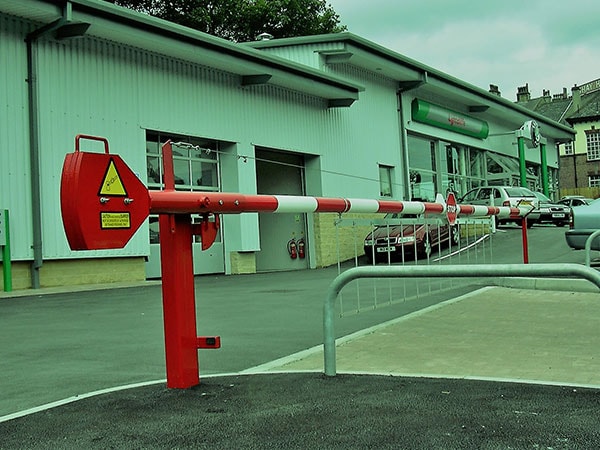

The ‘Lux’ heavy duty barrier is a superior quality heavy duty manual barrier which spans roads up to 9.0 metres. The pivot assembly is made of laser cut mild steel sections with a robust 150 mm x 100 mm support post.

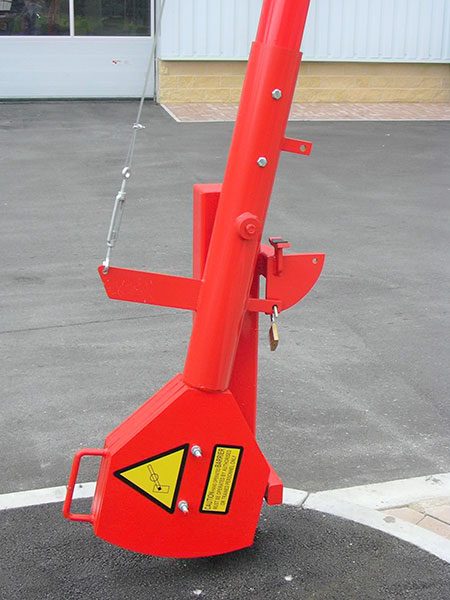

A 101 mm dia. aluminium pole arm, finished in either alternate red and white or alternate yellow and black vinyl hatching as standard (other colours available).The design of the barrier also comes with a locking mechanism allowing you to fix the barrier in the raised and lowered position prior to applying the padlock. A counter balanced fish tail weight, is ‘fine-tuned’ and weighted perfectly for ease of operation. Dual barriers are available with a central locking mechanism to suit wider spans. This barrier unit comes complete with a lockable end rest, padlock and keys as standard. M16 anchor shield bolts are also included.

Standard colours: Red/white or yellow/black.

Specification:

Counter balanced manual raise arm barrier

Maximum boom length:

Up to 9.0 meters

Boom diameter:

101 mm round section aluminum pole

Finish:

Polyester powder coated in a single RAL colour, alternate vinyl bands to pole arm

Dimensions:

150 mm x 100 mm rectangular support post

Comes complete with:-

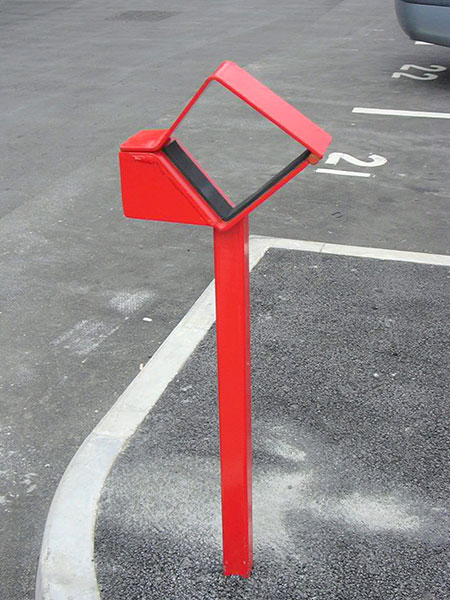

• Lockable end post
• Padlock
• Anchor shield bolts
• Lifting handle

Optional extras:-

Bottom skirting

Stop/no entry signs

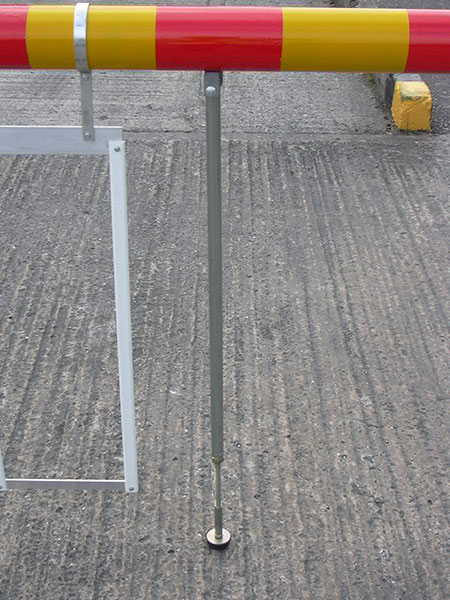

Pogo tip support
