Reader Bollard

The card reader bollard is designated bollard designed specifically for mounting various access control card readers. The card reader can be mounted either behind the post top plate providing a flush surface or if preferred the reader can be mounted proud of the top plate. Powder and communication cables can be run to the reader from inside the bollard to the reader.

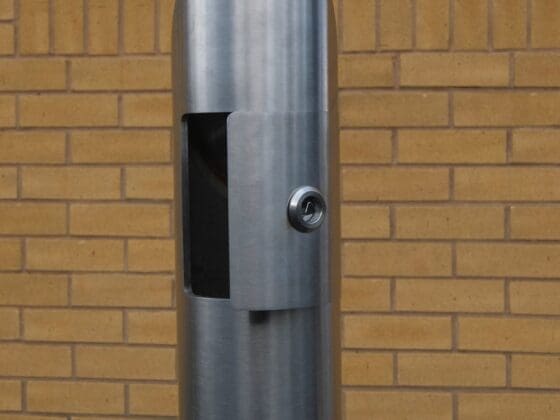

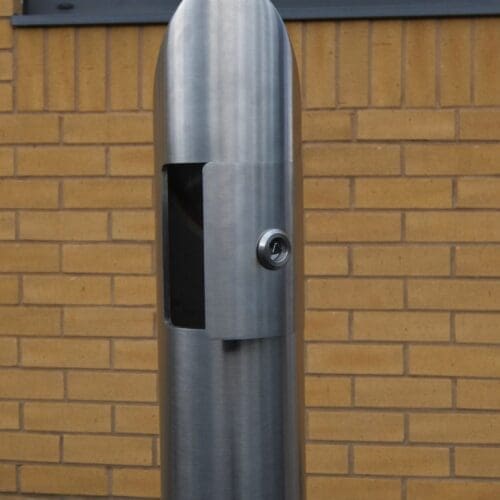

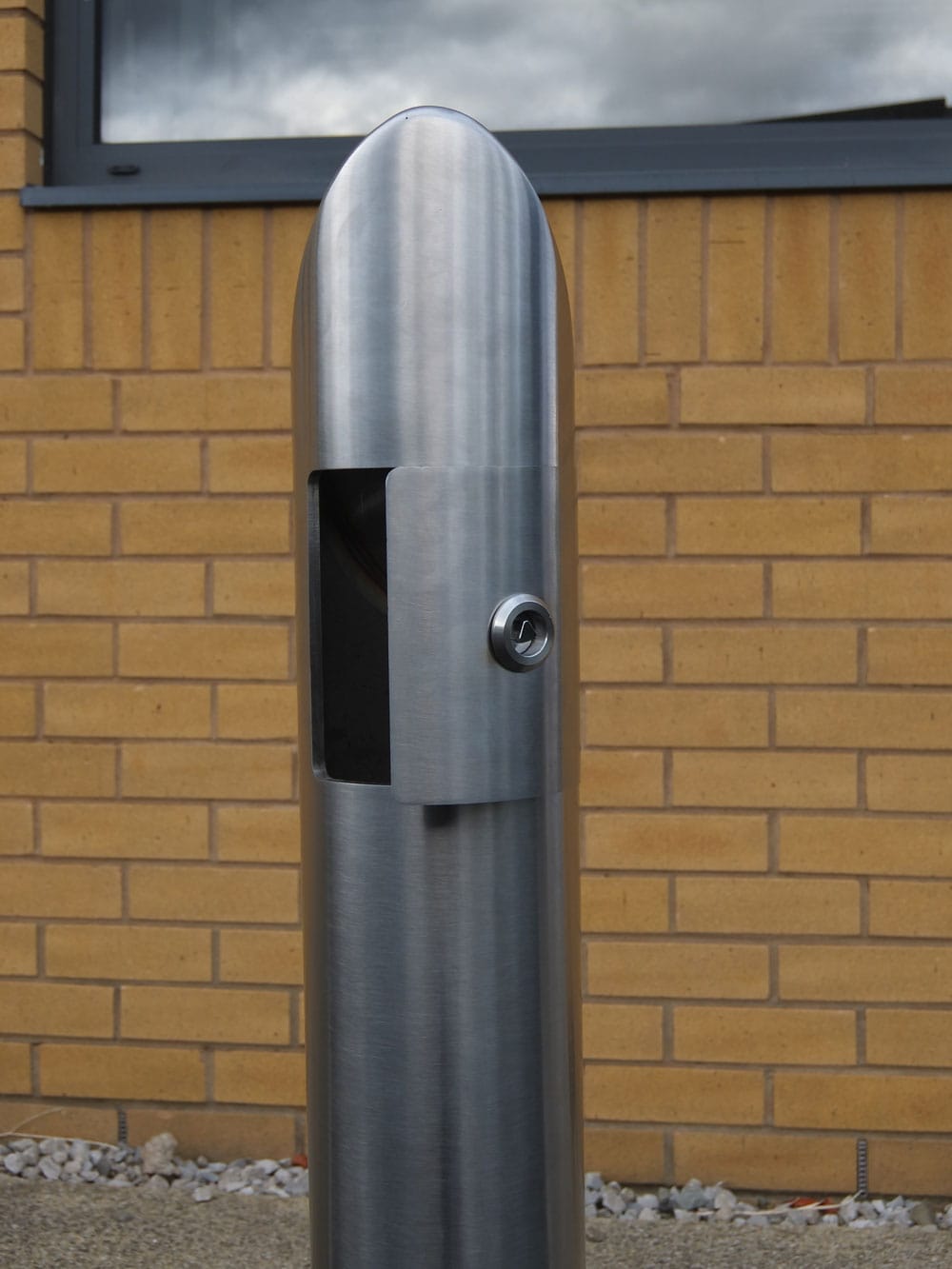

A lockable door with a piano hinge allows access when required to the card reader to be fitted or replaced when required. The standard lock is a tricorn type, with other locks available to special order.

The bollards can be fitted with a timber backboard in the internal structure, which provides an ideal mounting point for various electrical and ancillary products.

An access hole at the base of the bollard allows cables to pass through and an earthing bolt is supplied as standard.

Dimensions:-  Various standard bollard diameters to order from

76 mm diameter up to 300 mm diameter. Standard bollard lengths,

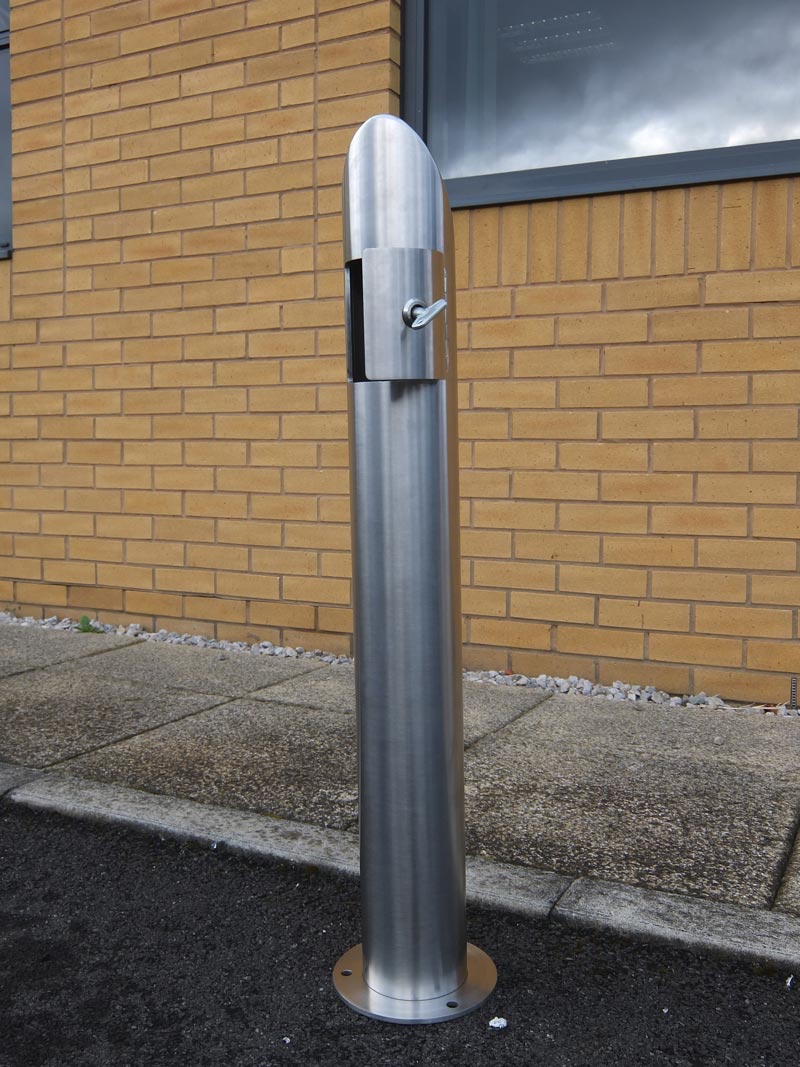

1000, 900 mm or 750mm height above ground. The Unit shown is 114 mm dia bollard with 30 degree mitred top/plate. The door aperture and position are made to customers’ requirements.

Options:  Submerged fix (root fix), base plate fix, reflective banding, available in satin or highly polished finishes.

Bollard top options:-

Flat, semi dome, high dome, sloped
