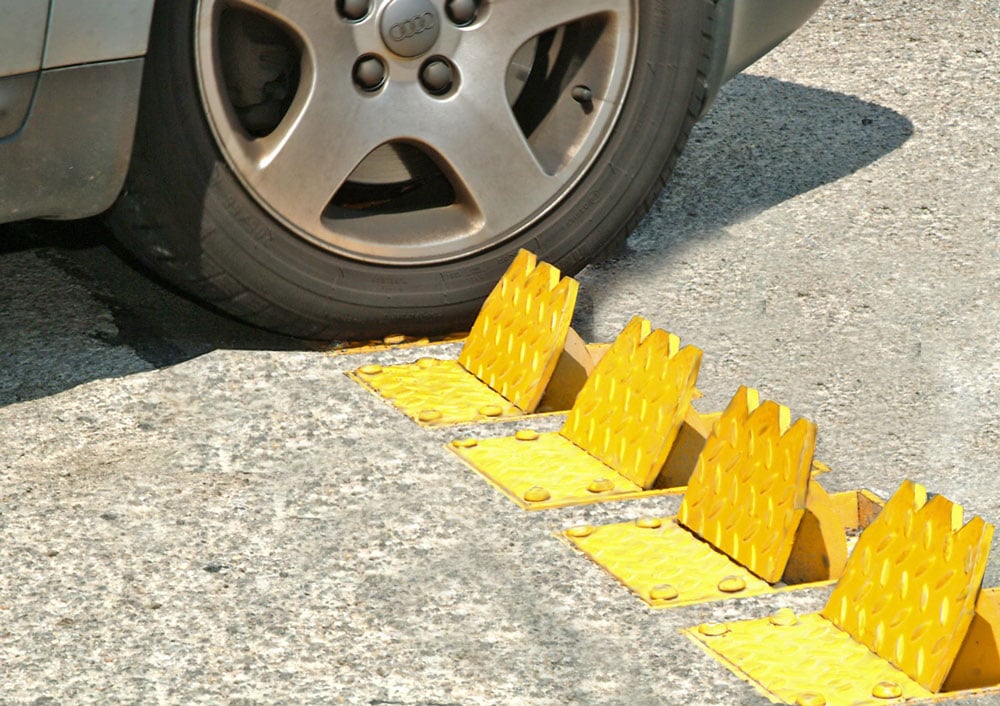

Recessed Flow Plate

Model Number: TCFP-RE
Height of Returning Top Plate: 110mm
Base Material: Heavy duty steel plate
Unit Dimensions: 250 x 250 x 250 mm
Top Plate Material: 8mm Durbar Steel
Recommended Top Speed: Not to exceed 5mph
Finish: Galvanised top plate. Primed and painted in traffic yellow RAL1023
Weight of Unit: 32kg
Options: Lock down facility

Installation

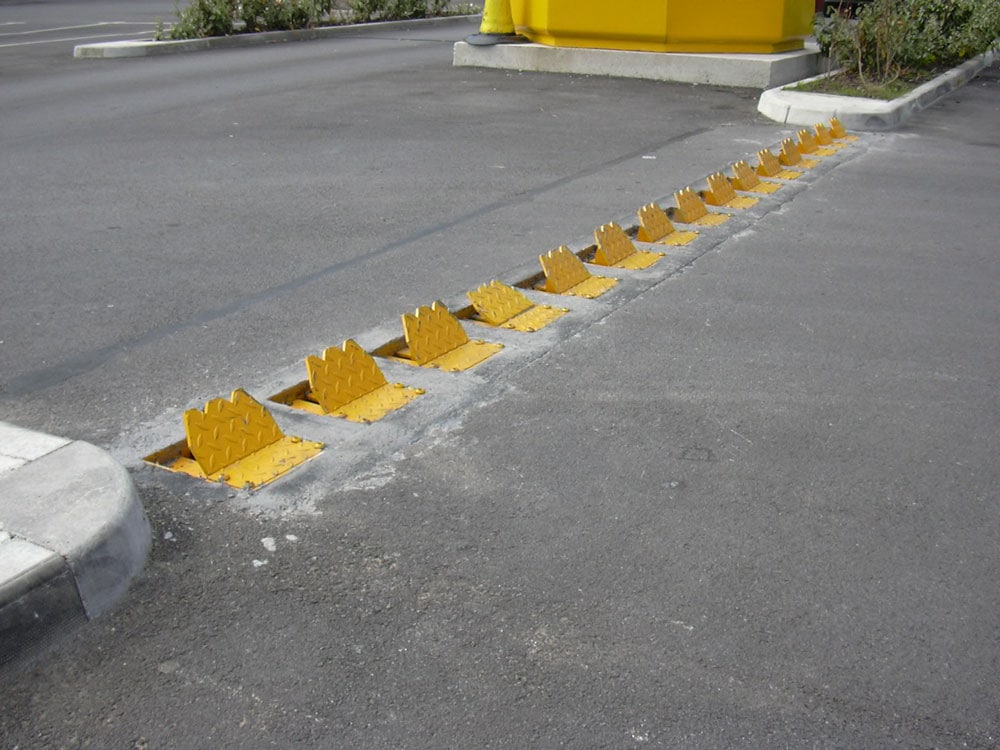

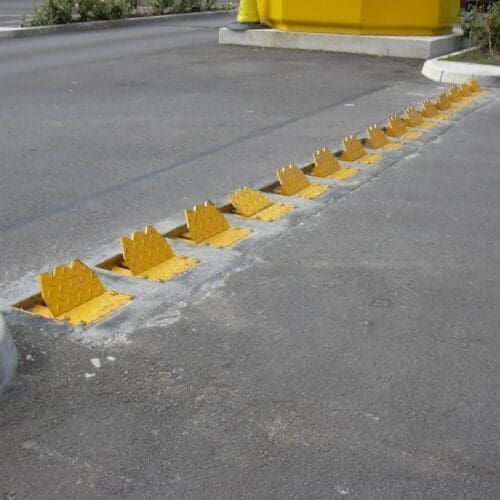

Typical installation of flow plates to 3 metre wide road:-

1. Cut trench across road 900mm wide x 325mm deep.
2. Lay concrete base 75mm thick.
3. Set plates as shown and connect drainage ducting to each plate and main drain.
4. Pour concrete and finish level with road surface.

NOTE: CONCRETE MUST BE HAVE CURED FOR A MINIMUM OF 36 HOURS BEFORE USE

Please contact our sales department for further information relating to the recommended layout and the

Number of plates required for a particular road width and the installation details for this product.
