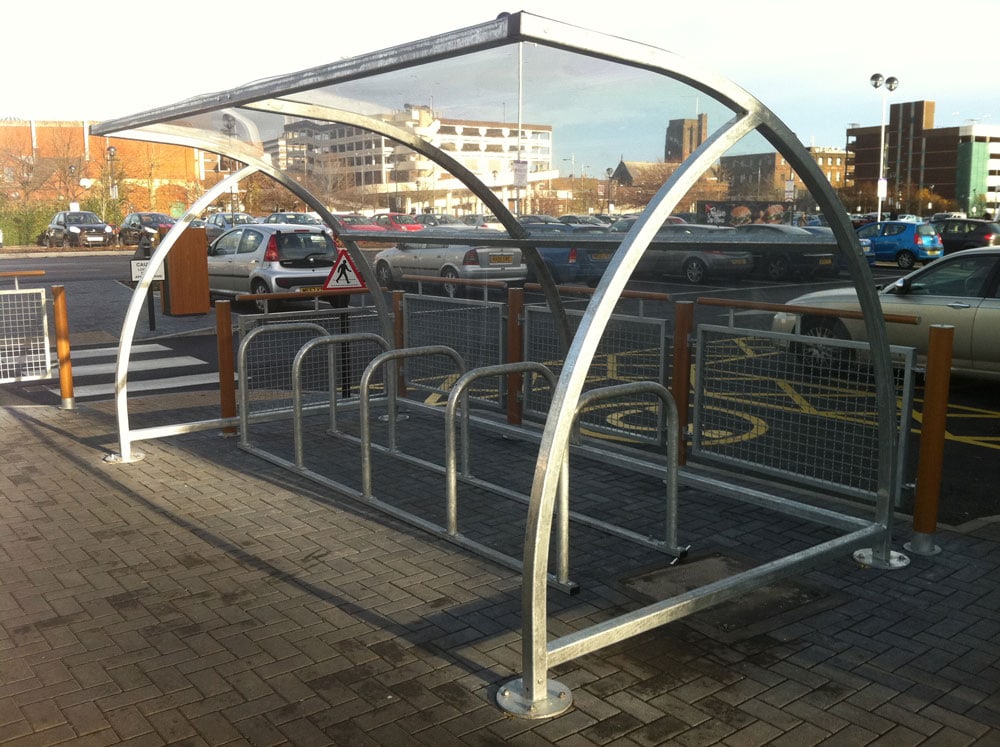

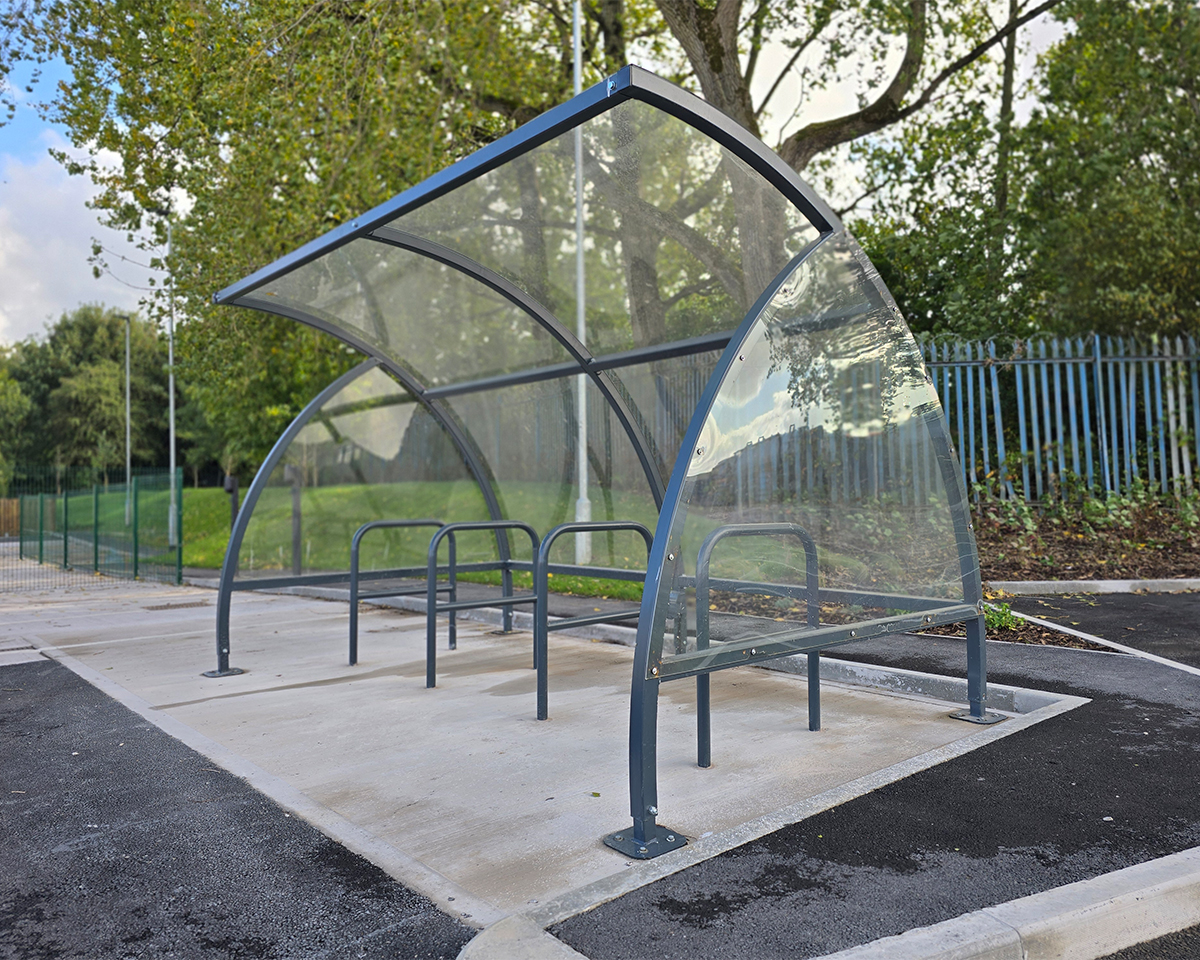

Sharktooth

A modern design employing dramatic clean curves to create a contemporary structure with striking form and function. The sweeping lines of the frame design blends well in most urban streetscapes.

This shelter can be supplied with either PETG glazing to roof/back in clear, opaque or bronze or a corrugated metal roof cladding profile in the Colourcoat HPS200 range of standard colours and profiles.

Offering protection and storage for typically 10 cycles it’s ideally suited to schools, colleges, universities and commercial office blocks alike.

The standard design features adjustable feat to accommodate and allow for undulating site surfaces. Most cycle stands and racks can be installed inside this shelter design.

Construction:

Welded twin end frame assembly in 60 * 60 mm strong box section, supplied in ‘flat pack’ form for assembly on site with anti-tamper, high strength bolts

Hot dipped galvanised to BS EN ISO 1461: 2009

Dimensions: Height 2200 mm 2150 mm width

Standard lengths 3600 mm, 4100, 5000 mm length, with alternative lengths made to order

Options:

PETG glazing to roof/back in clear, opaque or bronze

End panels (quadrants)

Corrugated metal roof cladding, Colourcoat HPS200 profile in a range of standard colours

Shelter can be configured to BREEAM standards

Steel framework can be polyester powder coated in most standard RAL colours

Internal lighting

Full installation service available UK wide by fully trained and accredited installers with a full site survey service available
