Speed Restrictor Ramps

Speed restrictor ramps are traffic calming devices that use vertical deflection to slow motor-vehicle traffic in order to improve safety conditions. The aim of reducing vehicle speed is to improve public safety and reduce the number of pedestrian and vehicle accidents. Speeds ramps have become a common and highly visible feature in car parks and roads because they encourage traffic to move slowly and safely.

These modular units can be arranged and installed to effect and reduce the speed of on-coming traffic on most sites or locations. Manufactured in the UK from 100 % recycled heavy duty PVC in either 30, 50 mm or 75 mm heights they are coloured in either high visibility yellow or black, which simply slot together on site. Typically alternate colours are laid to aid visibility. Units can be fixed in the ‘short term’ by use of an adhesive and later relocated and bolted down for permanent fixing. It is recommended that ‘speed warning signs’ are also used in conjunction with any speed ramp installation to warn approaching traffic of their presence.

Specifications:-

  • Manufactured in a highly durable and proven solid black recycled PVC manufactured in the UK with middle segments or end segments also available in a painted contrast high visibility ‘traffic’ yellow.
  • 12 month warranty

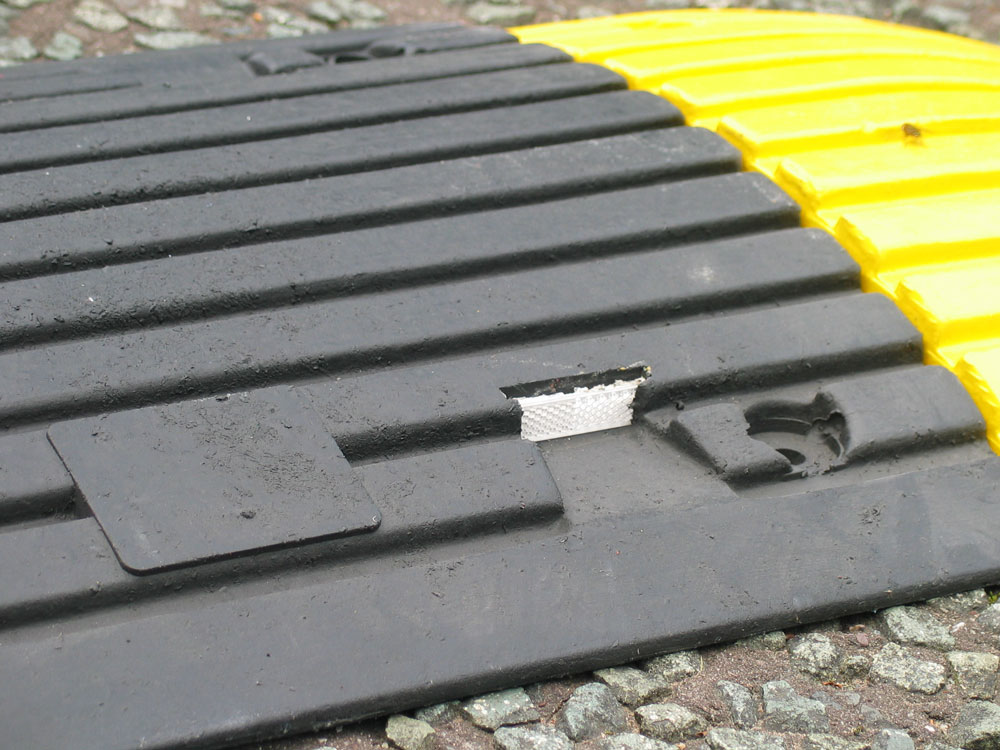

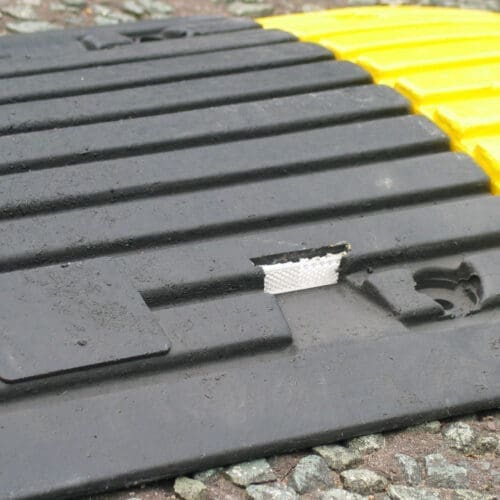

  • No slip surface with integral cats eyes as standard for extra visibility and safety
  • Built in channel for temporary traffic lights etc

30 mm height system, reduces speed to 15 MPH

Length 500 mm (End Caps 210 mm), part number SP30.MD
Width 400 mm (End Caps tapered), part number SP30.ED
Weight 5 Kg (End Caps 1.8 Kg)
30,000 Kg weight capacity
Integral channel 20 mm x 40 mm

50 mm height system, reduces speed to 10 MPH

Length 500 mm (End Caps 210 mm), part number SP50.MD
Width 420 mm (End Caps tapered), part number SP30.ED
Weight 7.7 Kg (End Caps 2.5 Kg)
30,000 Kg weight capacity
Integral channel 20 mm x 40 mm

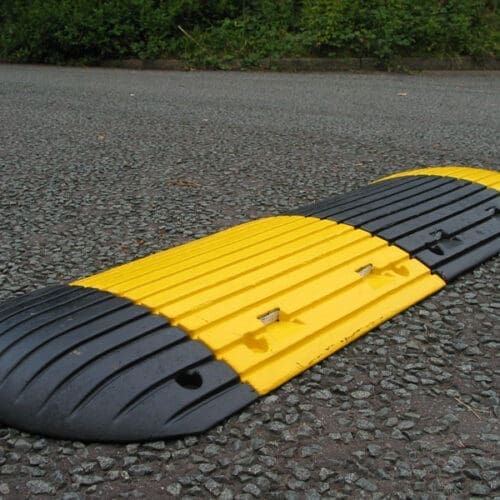

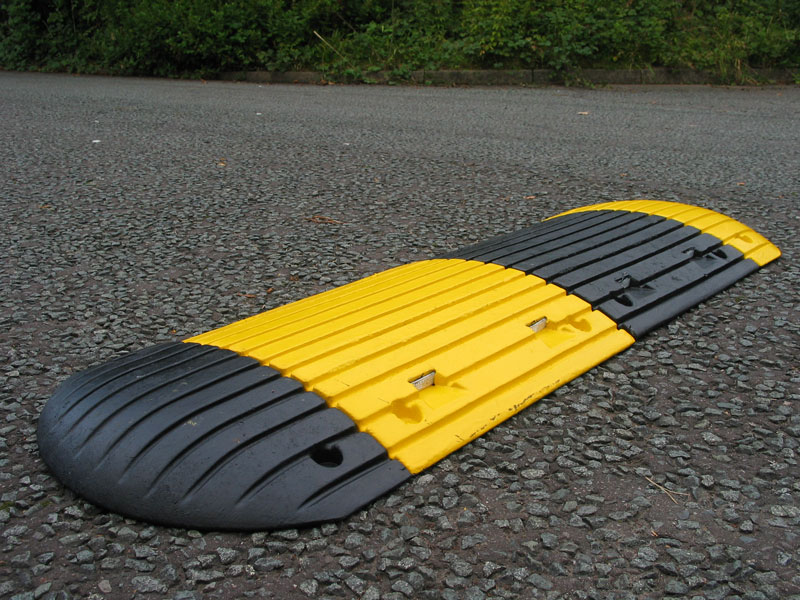

75 mm height system, reduces speed to 5 MPH

Length 500 mm (End Caps 210 mm), part number SP75.MD
Width 480 mm (End Caps tapered), part number SP75.ED
Weight 12.5 Kg (End Caps 5.5 Kg)
30,000 Kg weight capacity
Integral channel 50 mm x 60 mm

Fixing

  • It is recommended that sections are fixed using anchor bolts to a suitable level concrete surface.
  • Each 500 mm long central segment requires 4 anchor bolts.
  • Each individual end cap requires 2 anchor bolts.
  • Specialist anchor bolts are available for tarmac and asphalt surfaces.

Current UK legislation requires any person or company offering car park facilities to conduct a safety audit, and where vehicle speed in any area shared with pedestrians is a manageable risk, speed bumps are acknowledged to be the most effective speed risk management tool. The Health & Safety Executive have also stated that where no pavement exists, speed bumps are the ideal way to zone pedestrian walkways in areas shared with vehicles i.e. car parks, drives and access roads width of 500mm
