Standard Duty Barrier

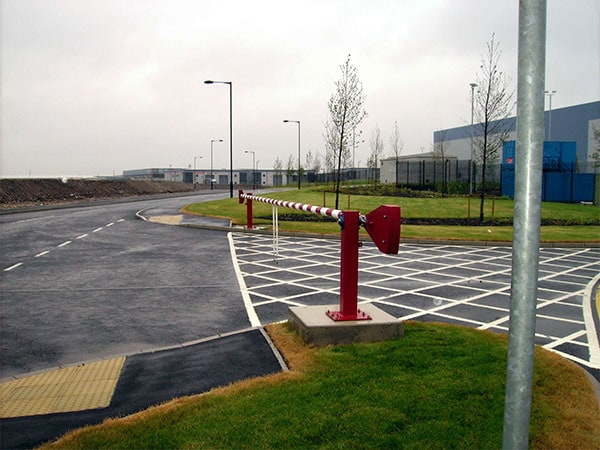

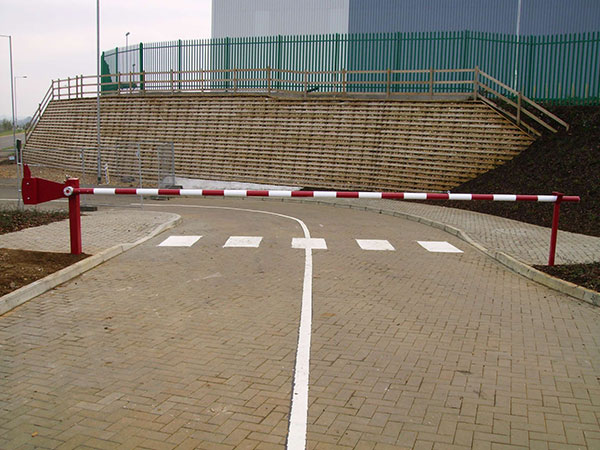

The standard duty manual raise arm barrier is a low maintenance, cost effective way of manually controlling access to unauthorised areas.

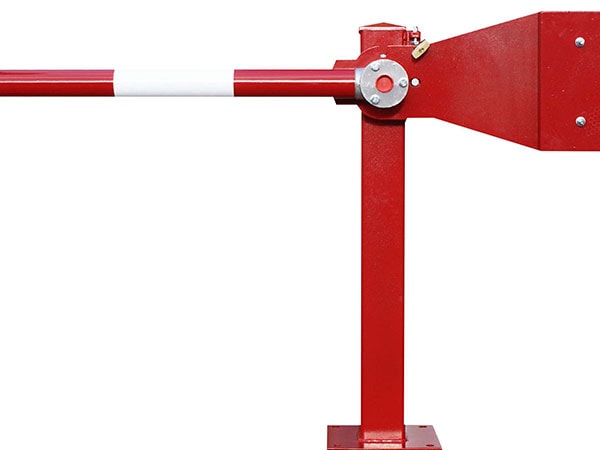

The barrier spans an area of up to 7.0 metres. The pivot assembly is made of steel box section, the zinc plated shaft pivots on two heavy-duty stainless steel bearing blocks. The design of the barrier incorporates a locking mechanism, allowing you to fix the barrier in the raised or lowered position prior to applying the padlock.  A counter balanced fish tail weight, is fine tuned for ease of operation. This barrier unit comes complete with a lockable end rest, padlock and keys as standard. M16 anchor shield bolts are also included.

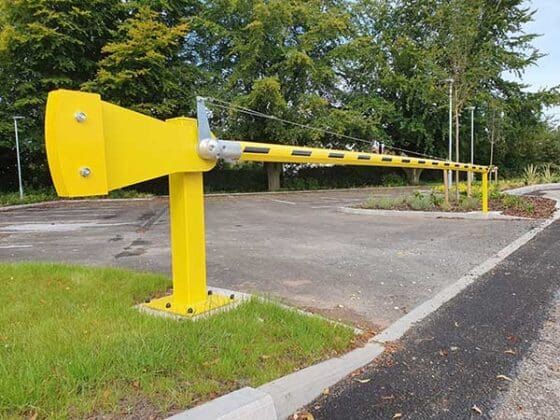

Aluminium arm, finished in either alternate red and white or alternate yellow and black vinyl hatching as standard (other colours available).

Standard colours: Red/white or yellow/black.

Specification:

Counter balanced manual raise arm barrier

Maximum boom length:

3 up to 7.0 meters

Boom diameter:

76 mm oval section pole

Finish:

Polyester powder coated in a single RAL colour, alternate vinyl bands to pole arm

Dimensions:

120 mm square

Comes complete with:-

• Lockable end post
• Padlock
• Anchor shield bolts
• Lifting handle

Optional extras:-

Bottom skirting

Stop/no entry signs

Pogo tip support
