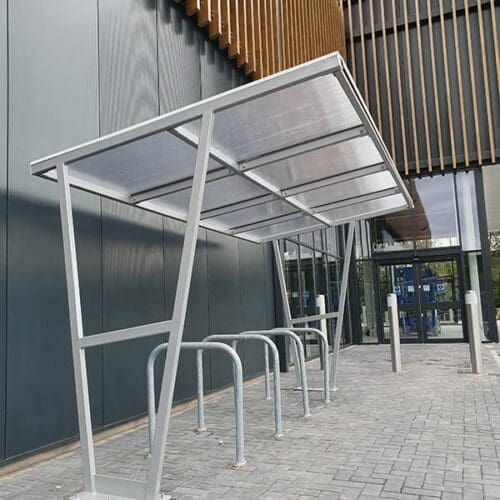

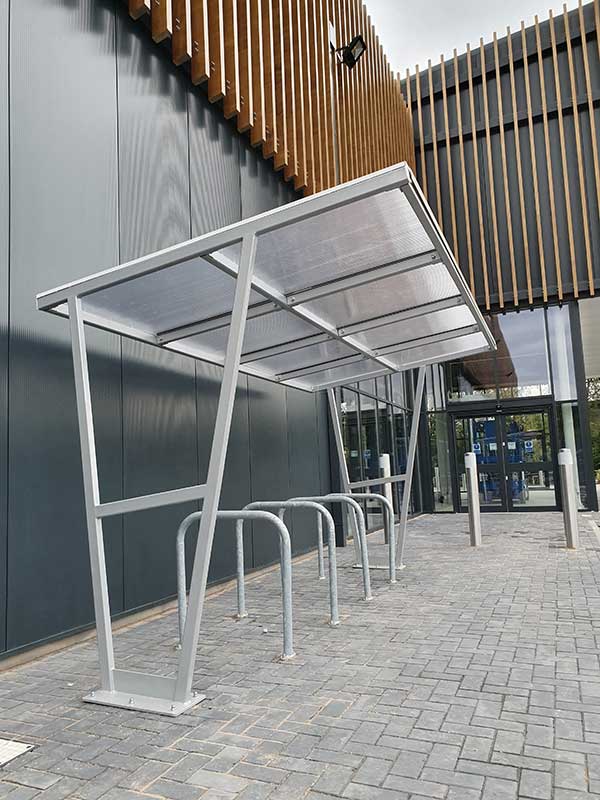

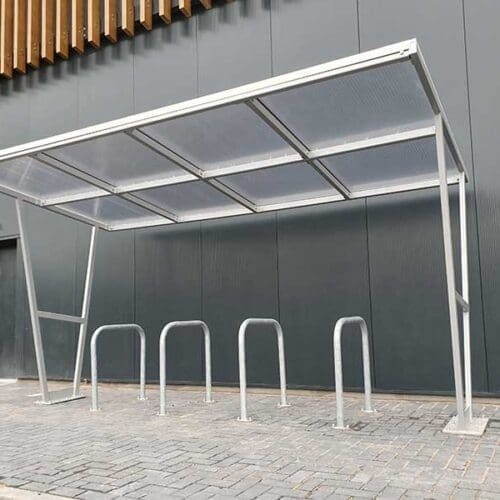

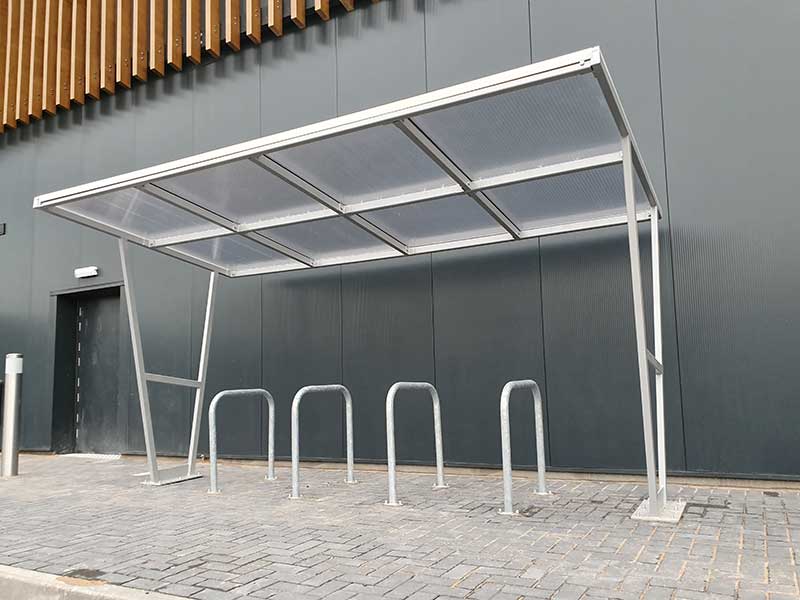

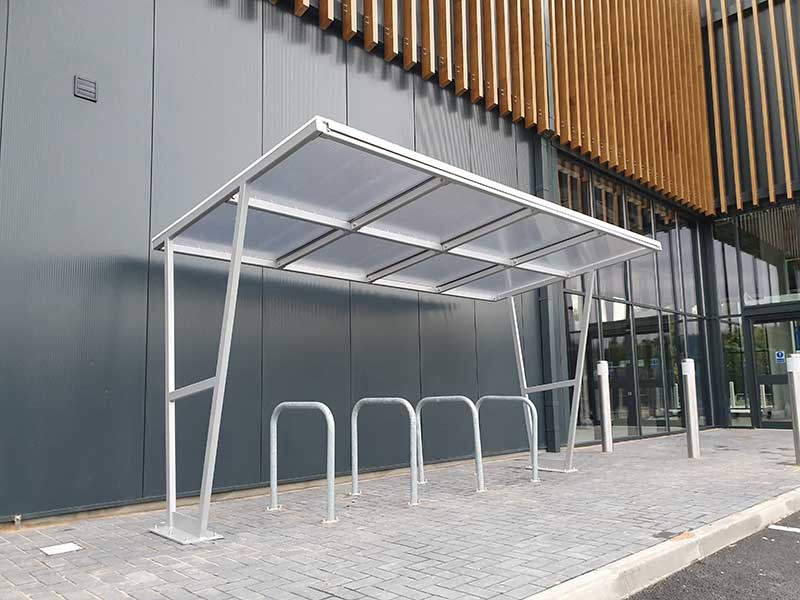

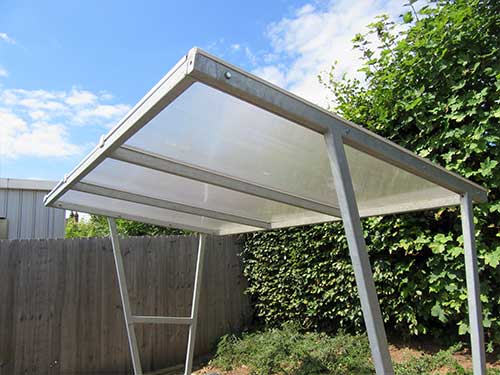

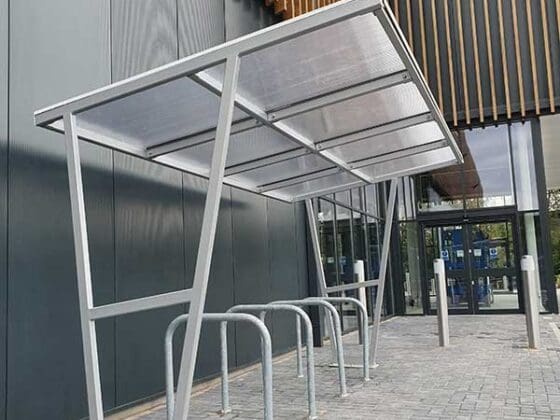

The Tamworth is a modern asymmetrical shelter featuring twin ‘splayed’ end frames with dramatic geometry to create a dynamic contemporary structure. This shelter design is
well suited to most urban streetscapes and allows easy access to cycles inside.

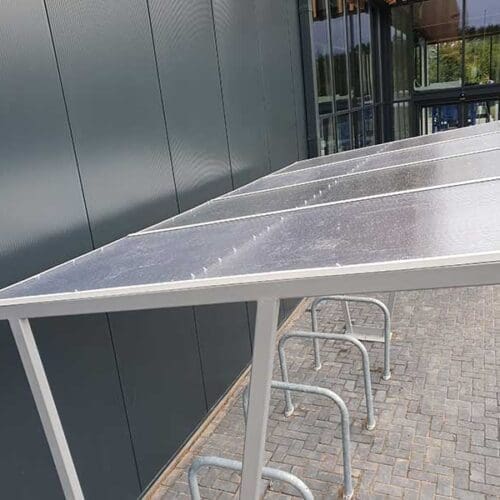

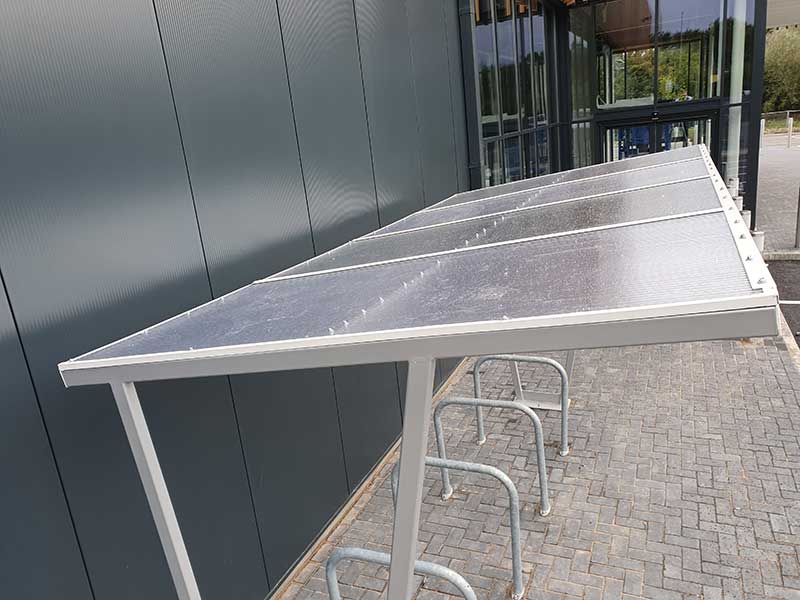

This robust design can be clad with either PETG glazing to the load bearing roof purlins in clear, opaque or bronze or a corrugated R32 metal roof cladding profile in the Colourcoat HPS200 range of standard colours and profiles.
Offering protection and storage for typically 10 cycles it’s ideally suited to schools, colleges, universities and commercial office blocks alike.
Most cycle stands and racks can be installed inside this shelter design.
60 x 40 mm RHS strong box section uprights and roof frame.
Supplied in ‘flat pack form for assembly on site with anti-tamper, high strength bolts
Hot dipped galvanised to BS EN ISO 1461: 2009
Height 2200 mm to front, 1880 mm width 1940 mm
Standard lengths 3600 mm, 4100, 5000 mm length, with alternative lengths made to order
Range of cycle storage racks and stands
PETG glazing or twin wall polycarbonate roof
Corrugated steel roof cladding, R32,HPS 200 ColourCoat profile Is available in a range of standard colours
Multiple banks to increase storage capacity
Shelter can be made to BREEAM standards
Steel framework can be polyester powder coated in most standard RAL colours
Full installation service available UK wide by fully trained and accredited installers with a full site survey service available
