The Leighton

Product code: CYSH.LEIGH

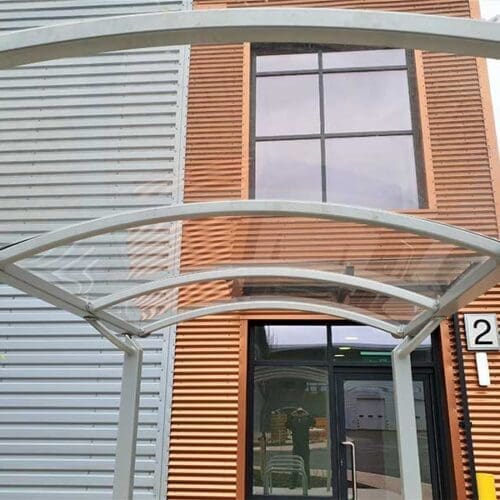

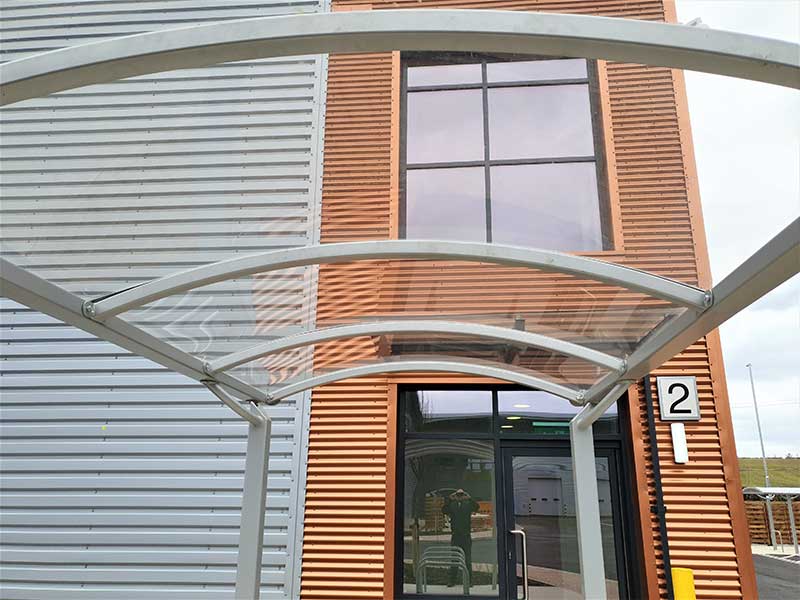

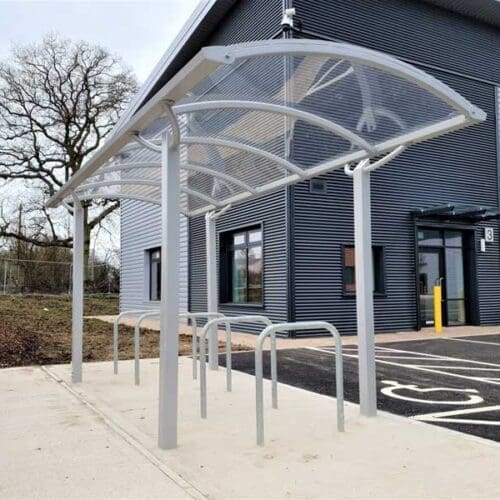

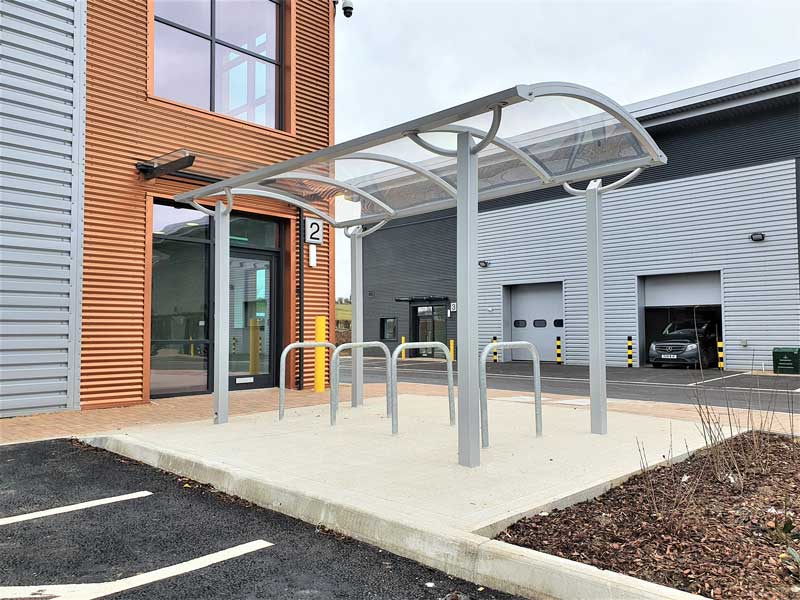

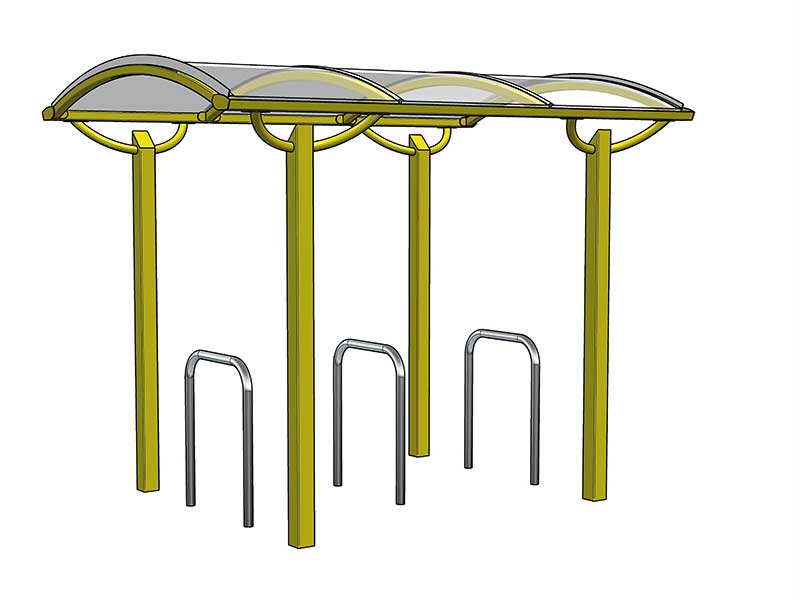

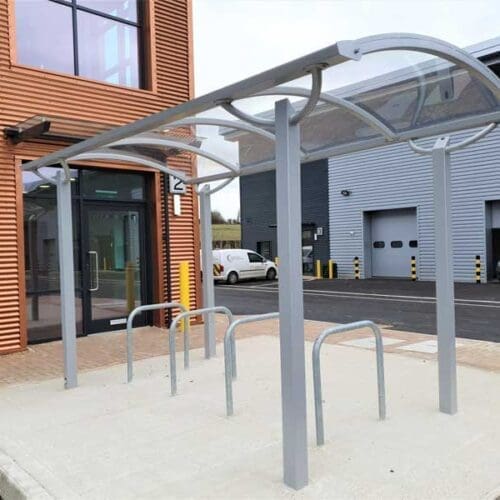

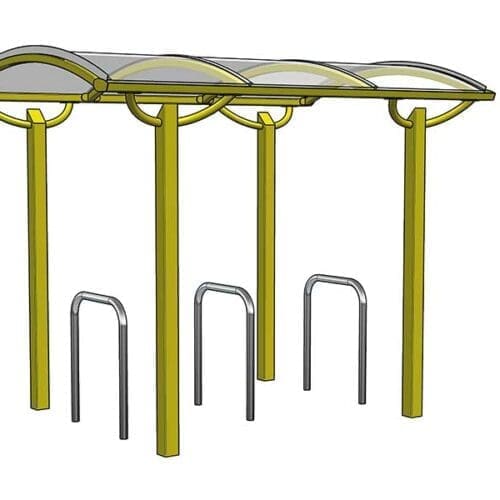

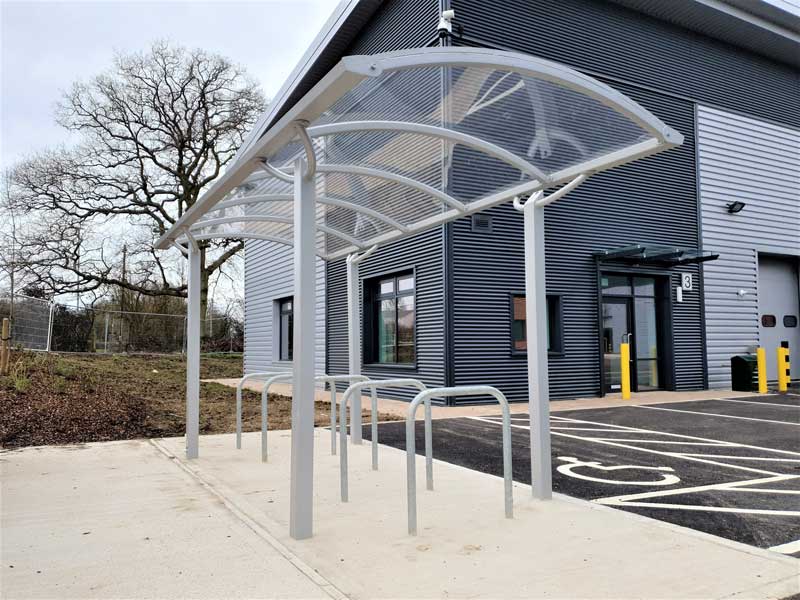

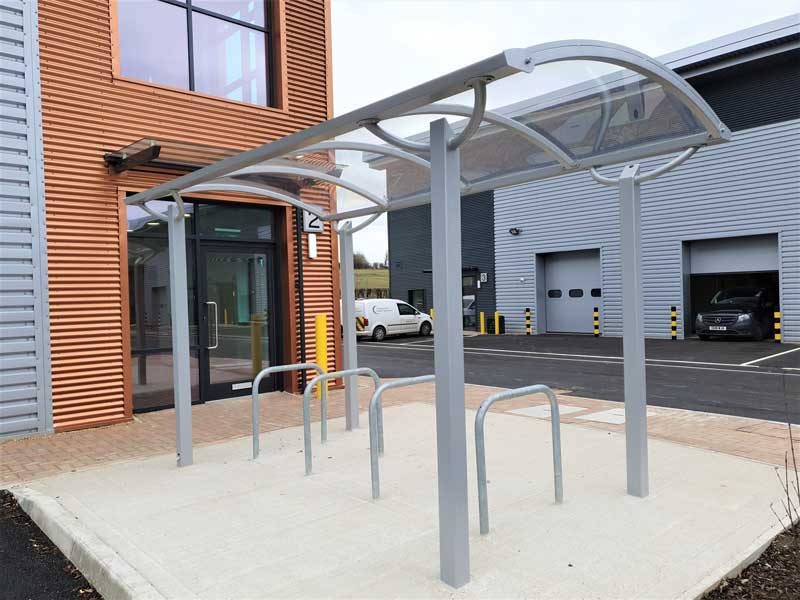

A striking and elegant barrel roof cycle shelter available in different standard lengths, 3, 4 and 5 meters with concealed drainage/gutter system with dramatic clean curves that create a dynamic contemporary structure.

Clad with PETG glazing available in clear, opaque, or bronze.

Offering protection and storage for typically 10 cycles it’s ideally suited to schools, colleges, universities and commercial office blocks alike.

Most cycle stands and racks can be installed inside this shelter design.



Construction:

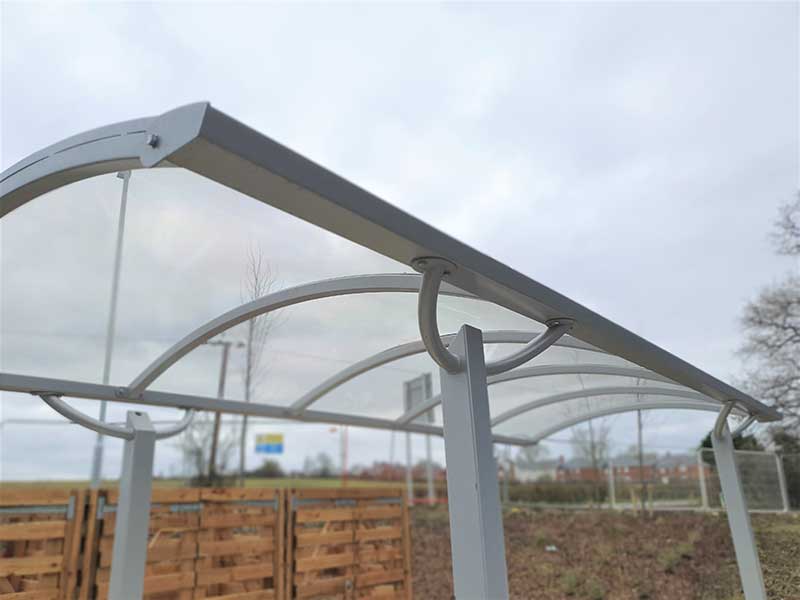

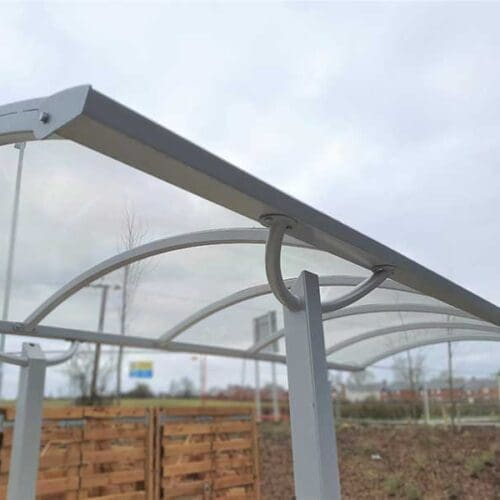

UK manufactured and fabricated with 100 X 100 mm strong box SHS legs with, 48 diameter mm curved roof purlins all supplied in ‘flat pack’ form for assembly on site with anti-tamper, high strength bolts

Hot dipped galvanised to BS EN ISO 1461: 2009 as standard.

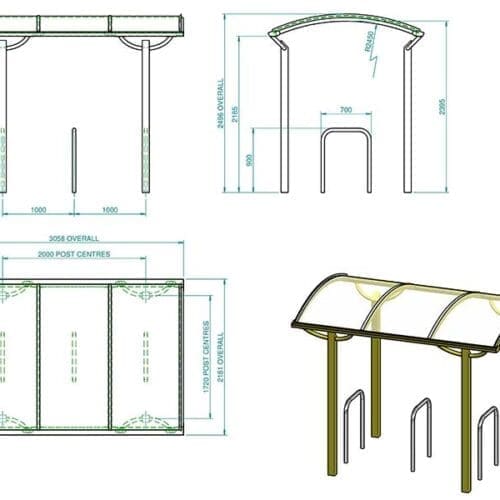

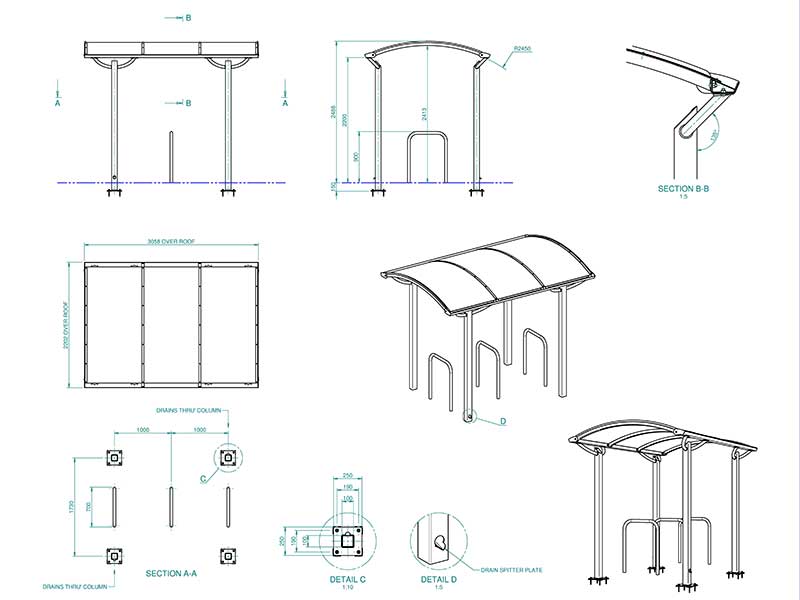

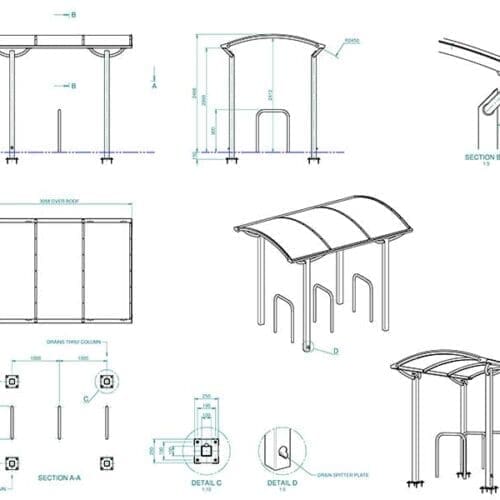

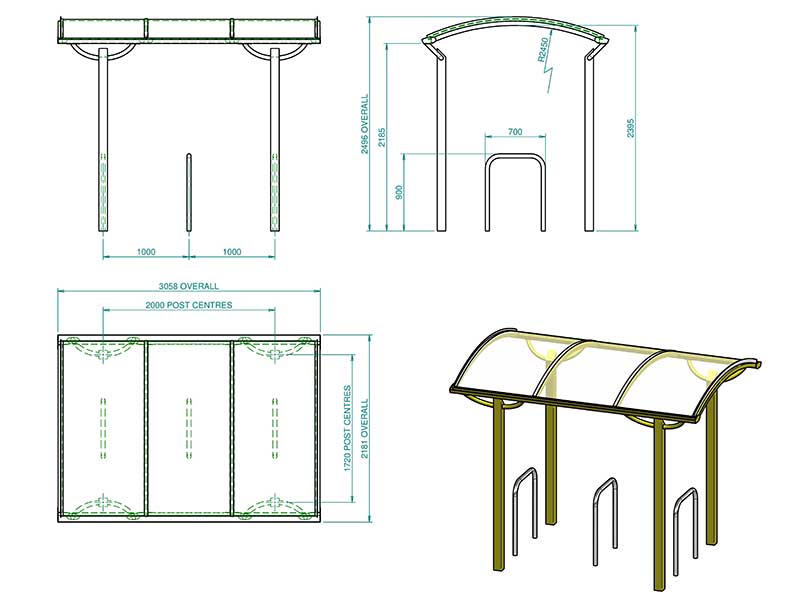

Dimensions:-  Height 2488 mm to apex 2413 mm to underside, 2020 mm wide

Standard lengths 3058 mm, 4058, 5058 mm length, with alternative lengths and configurations made to order



Options:-

PETG glazing to roof in clear, opaque or bronze.

Shelter can be configured for BREEAM standards

Steel framework can be polyester powder coated in most standard RAL colours

Internal lighting

Full installation service available UK wide by fully trained and accredited installers with a full site survey service available
