Timber Clad Shelters

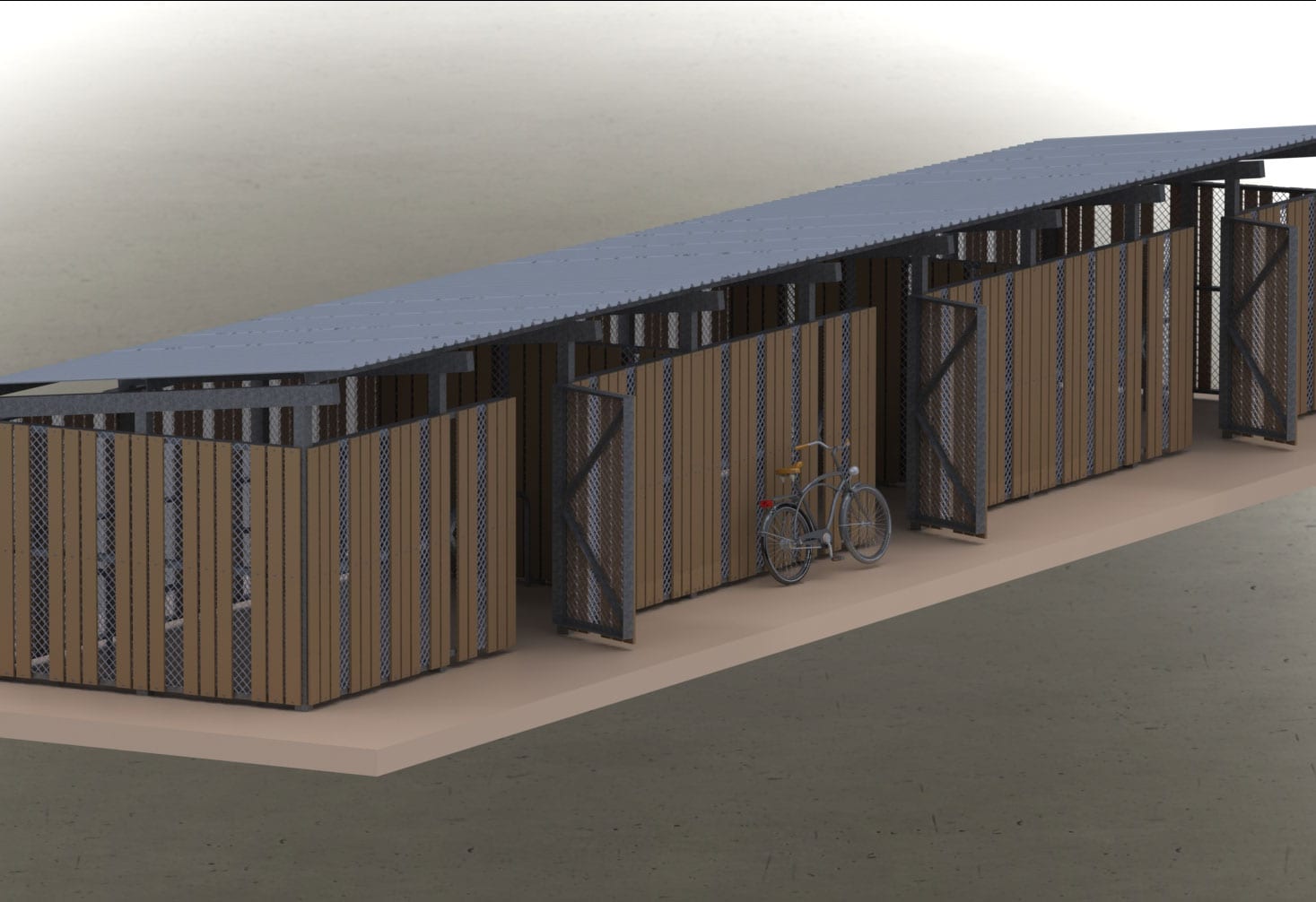

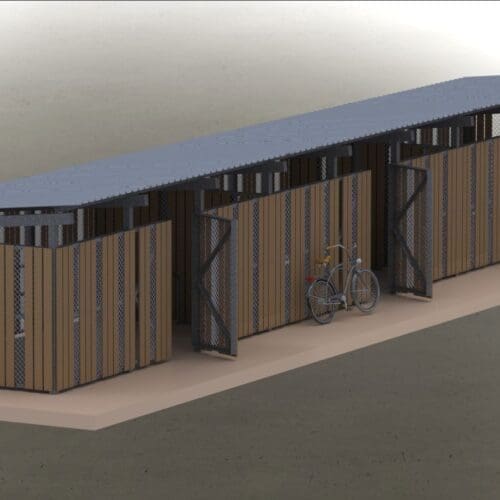

The Bollard street timber clad cycle Shelter is a modern design constructed from a steel frame which is covered with timber cladding with various roof options.

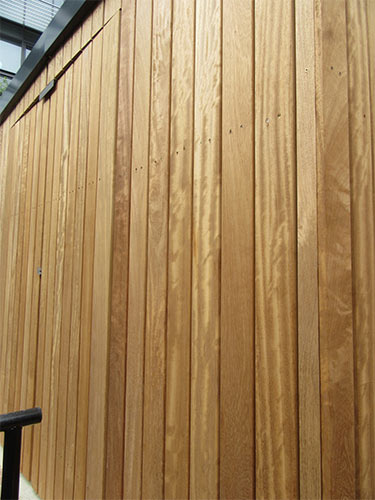

The flexible modular design which is UK manufactured can be easily adapted and is available in various configurations and sizes. Available with sustainable timber cladding in a choice of either treated softwoods or hardwoods in various finishes. Timbers available include, cedar, larch, and iroko with options of most commonly available timbers to order.

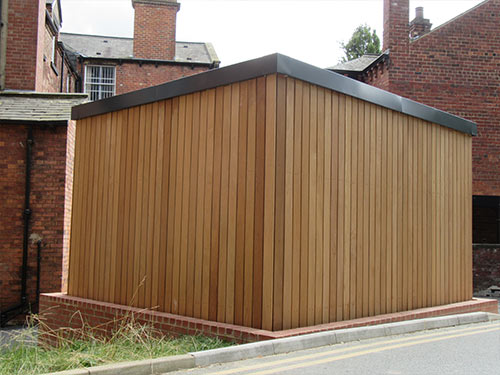

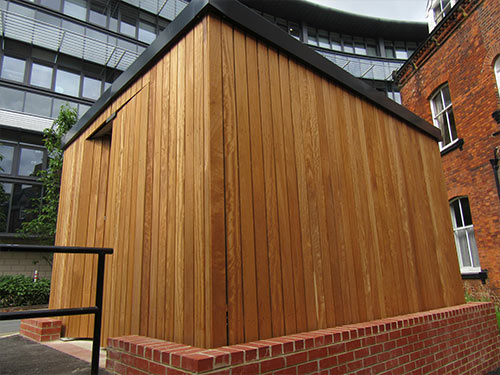

The shelter’s timber aesthetics make it ideally suited for rural settings but it equally blends into more urban environments creating an attractive contrast between the timber slats and the surrounding built environment.

Offering a unique secure cycle parking solution which is ideally suited for schools and university college campuses, office blocks and commercial buildings.

All steelwork is hot-dip galvanized to BS EN ISO 1461:2009 for maximum corrosion resistance which can also be powder coated in a RAL colour to match a corporate colour schemes if required. The shelter can be designed to be either ‘open’ or a secure compound with controlled access by means of lockable gates secured by mechanical keypad or padlock fix.

This shelter design is available with the option of a live “Green” roof made of sedum and dwarf grasses. This product is manufactured and assembled entirely from sustainable and recyclable materials, which are all manufactured in the UK.

Standard Product construction

Robust modular construction in square hollow section mild steel featuring load bearing purlins

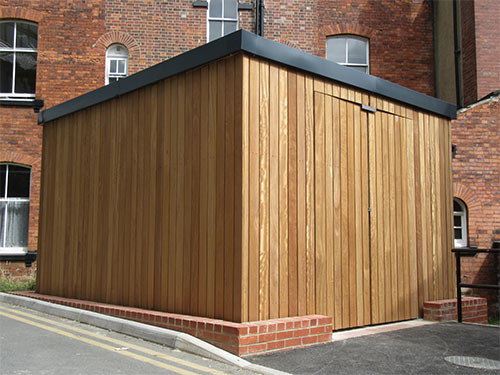

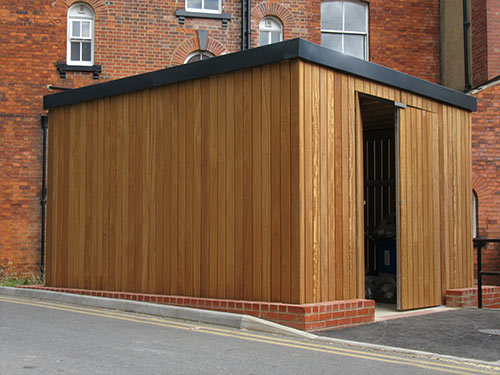

Vertical timber clad double leaf security gates with hasp and staple locking mechanisms

Submerged ground fixing with base plate

Hollow section end frames and purlins

Assembled with high strength bolts on site, supplied ready for assembly on site

Dimensions: 2115 mm height, 2060 mm width

Standard lengths 3000 mm, 4100, 5100 mm length, with alternative lengths made to order

Options:

Bespoke versions available to suit individual site requirements

Range of cycle racks or stands can be utilized inside the shelter

Shelter can be made to comply too BREEAM standards

Steel framework can be polyester powder coated in most standard RAL colours

Secure compound design available with swinging or sliding gate

Guttering either integral structural gutter in aluminum with discreet downpipe arrangement

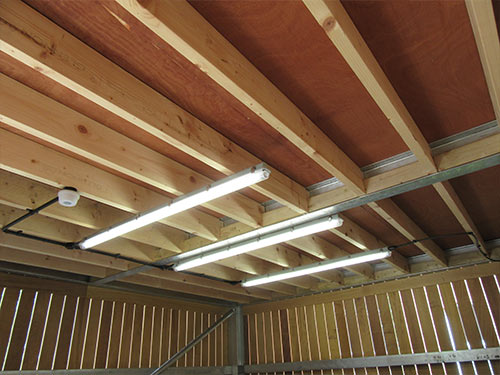

Internal lighting

BREEAM compliant configurations available

Full installation service available UK wide by full trained site installers with a full site survey service available

Roof cladding options:-

PETG glazing, twin wall polycarbonate

Profile steel corrugated cladding, HPS 200, R32 Profile, ColourCoat profiled steel roof cladding in a range of standard colours

‘Green roof’ with Sedum and dwarf grasses
