‘Tripod’ design EV protector

Product code: BS.EVP.TRIP

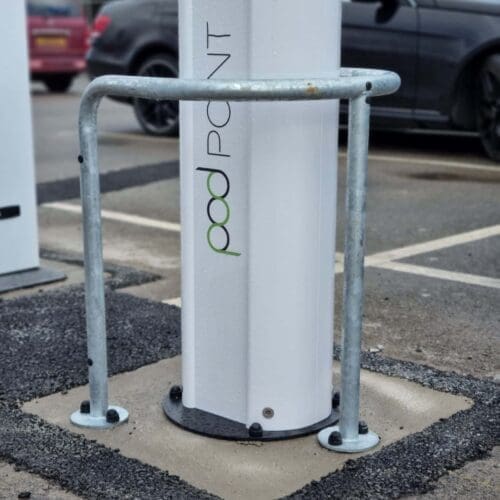

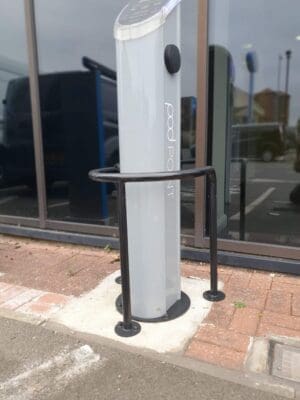

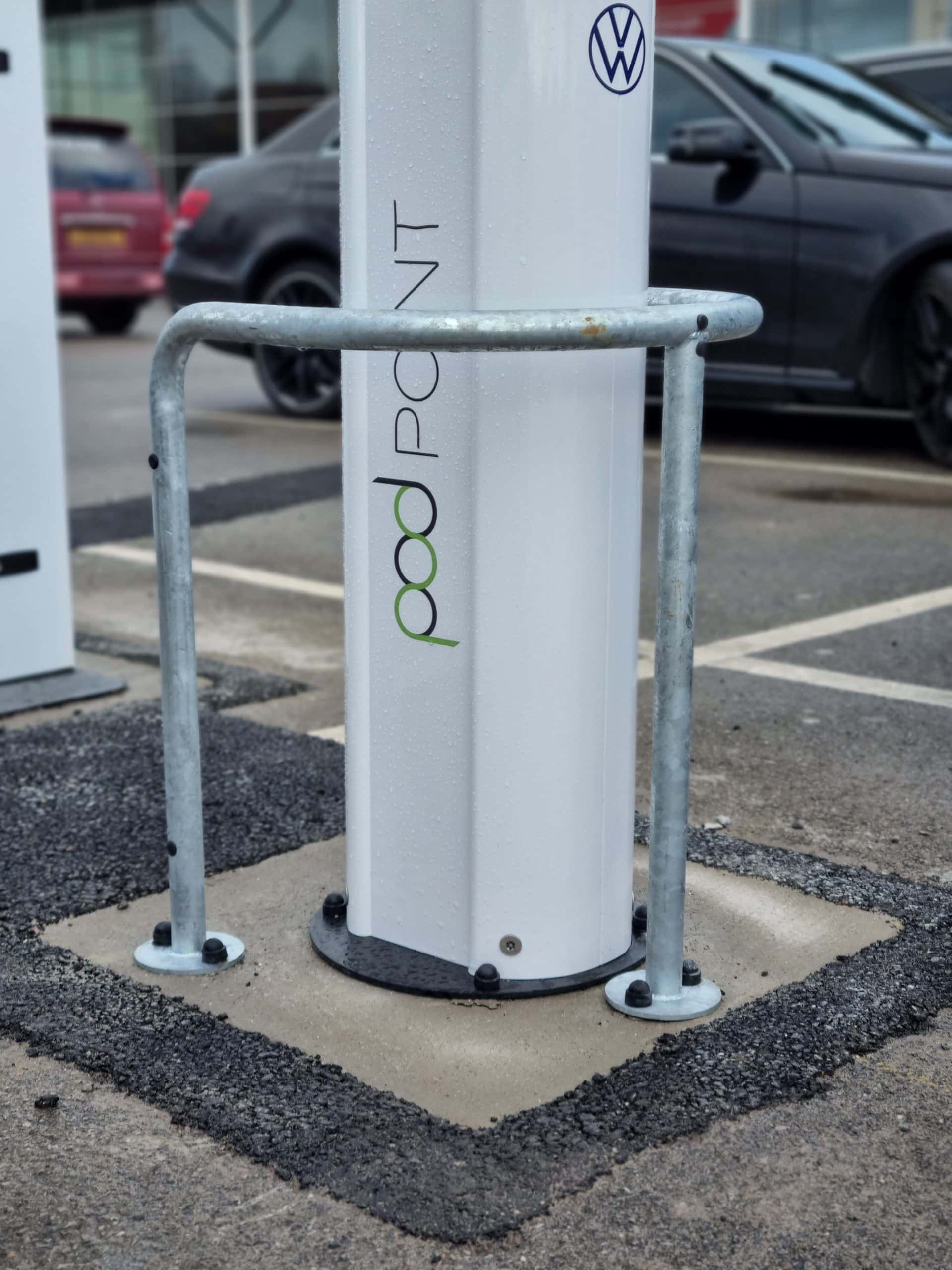

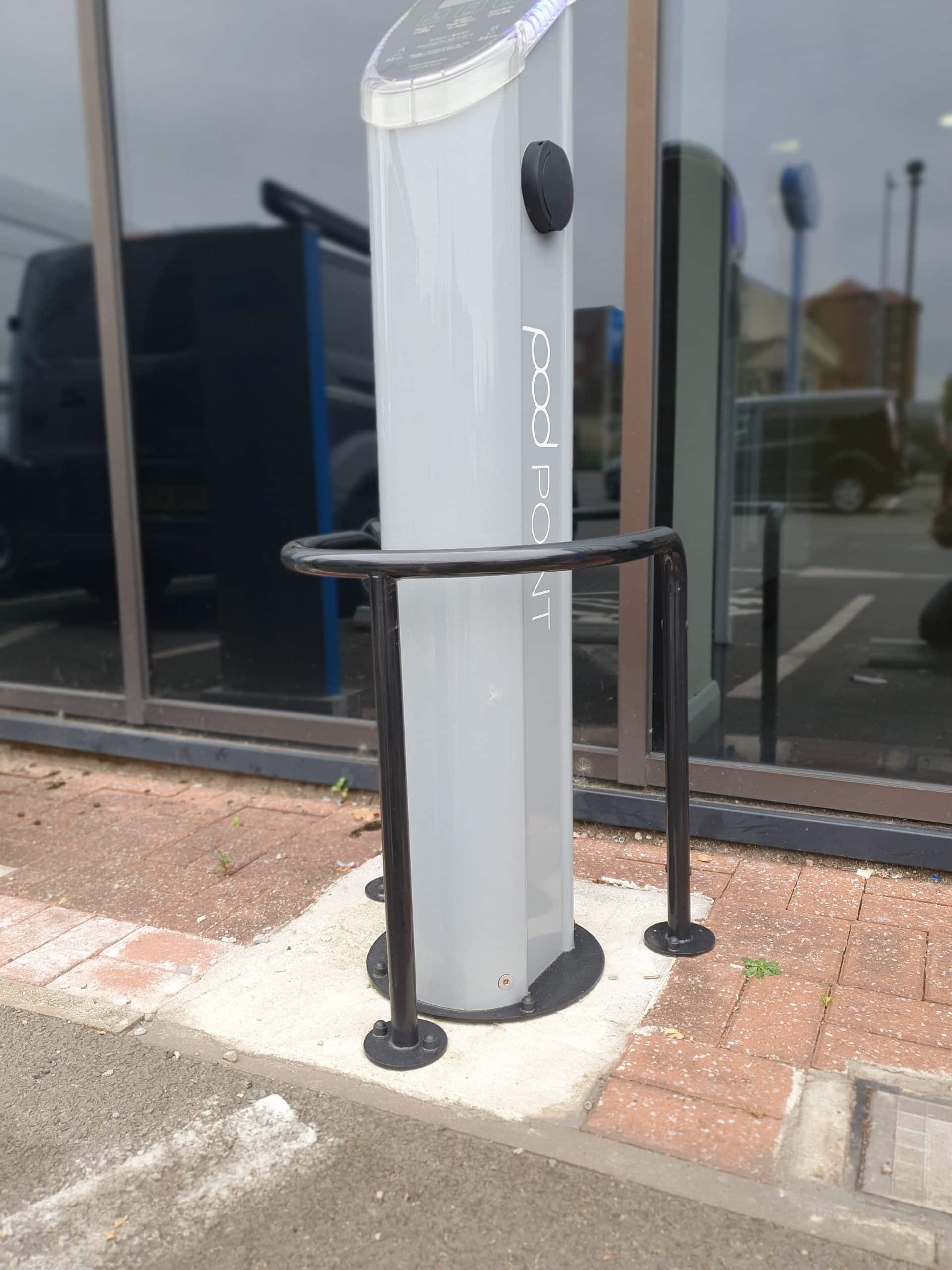

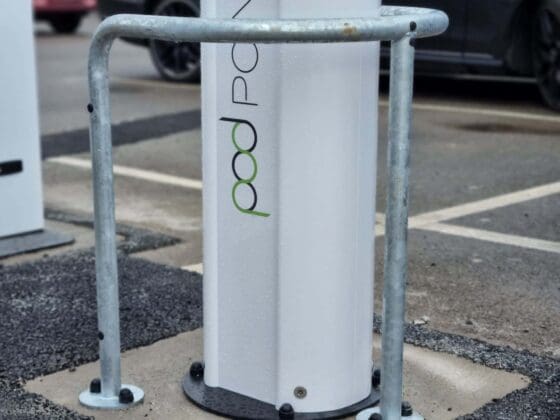

The tripod unit is a single piece solution which sits close to the actual EV charger having the advantage of presenting limited physical obstruction near the EV unit locality available in various sections of steel.

Available in mild steel hot dipped galvanized to BS EN ISO 1461:2009 and can also be powder coated in any standard BS or RAL standard colour and is also available in stainless steel.

Section:-  30 ,40, 48.3 CHS tube as standard and also 60 mm to order

Dimensions:- 500 wide, 450 mm depth, 600 mm Height,

Options:–

• Submerged ‘root’ fix or base plate fix.
• Polyester powder coated to most standard RAL or BS 4800 range colours.
• Available in stainless steel, 304 grade and 316 grade.
• Complete range of ground fixing bolts and plastic covers nut covers for the ground fixings
