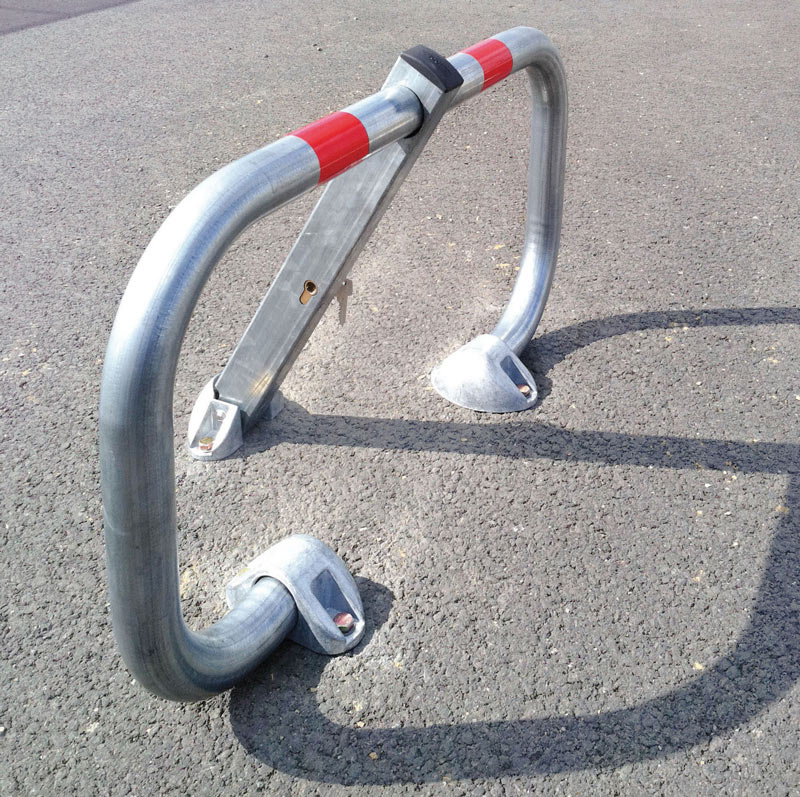

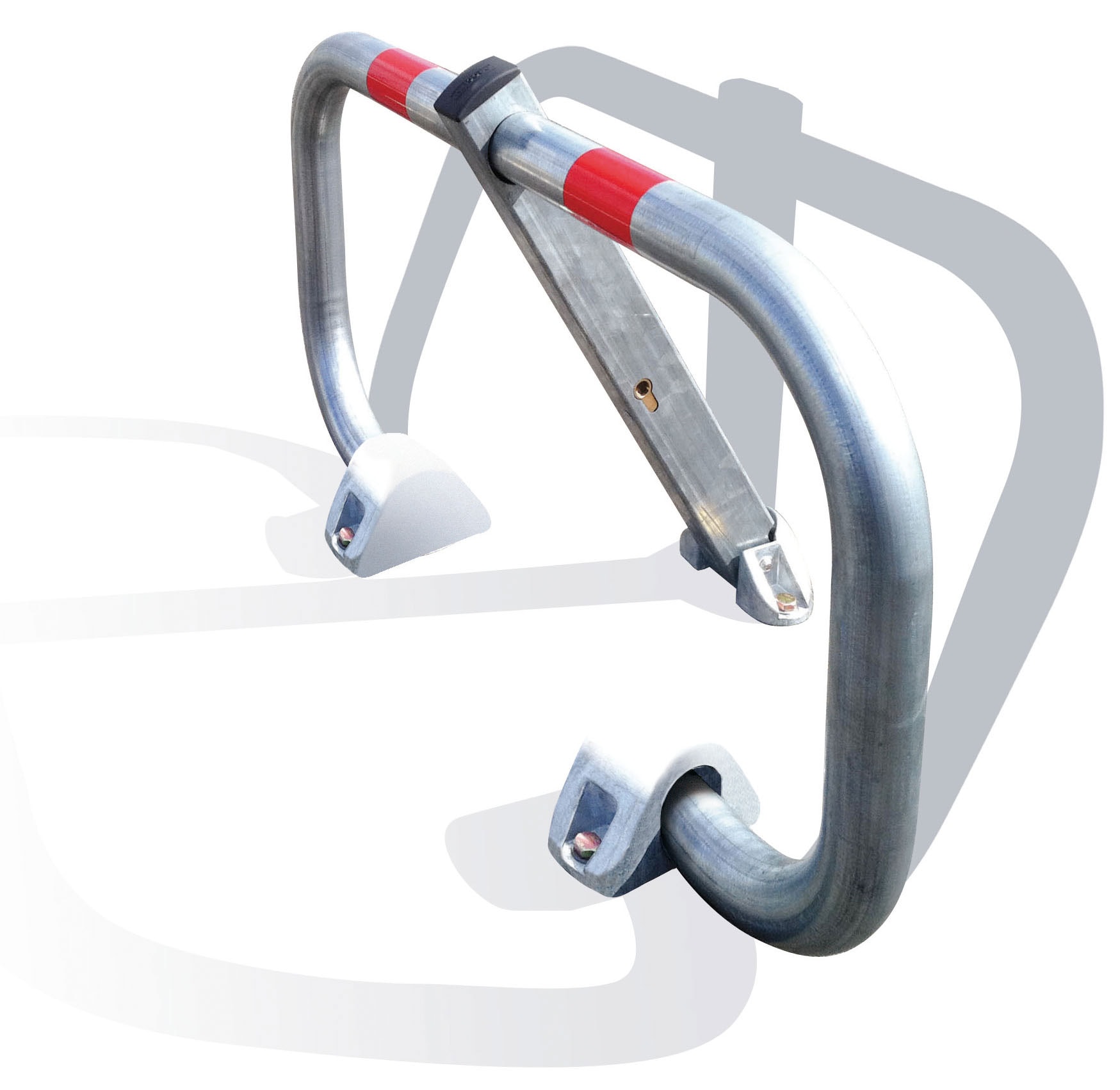

Winged Parking Barrier

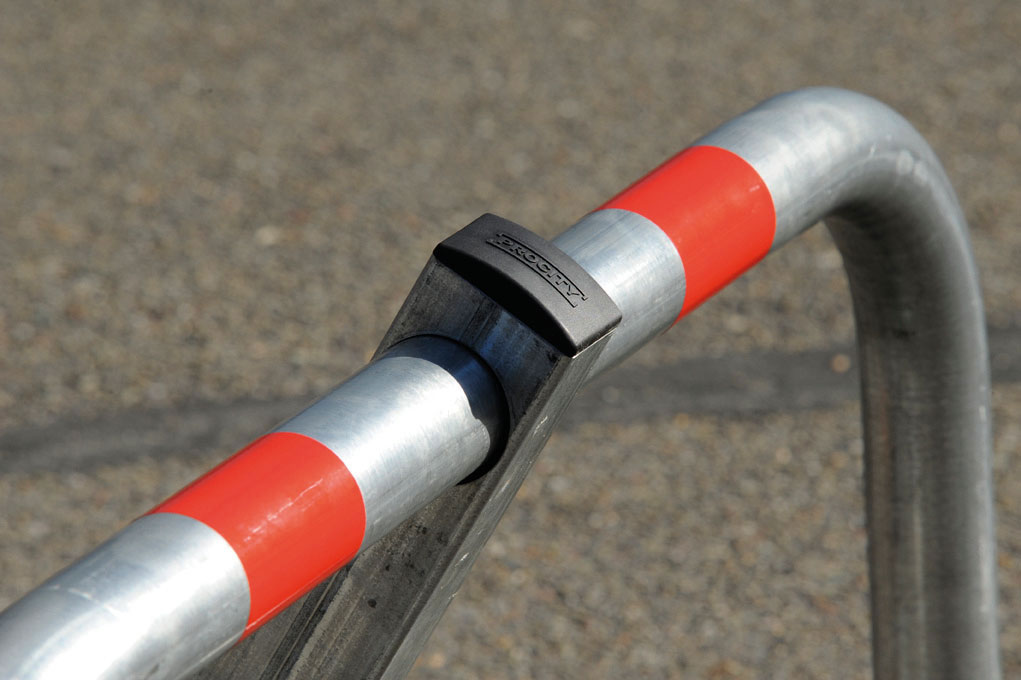

This is a simple and effective means of protecting parking spaces. The winged parking barrier is an alternative to steel parking posts, and is ideally suited for securing individual parking spaces. Manufactured in 50 mm diameter galvanised steel tube and supplied with self-adhesive red reflective strips for visibility. It features a central 60 mm x 40 mm telescopic leg and cast aluminum bases.

There are three different locking options available for this product, a padlock, a European cylinder lock or an 11 mm tricorn lock. This posts locates and locks in vertical position. It features a shock-absorbing design which will withstand low speed vehicle impacts thanks to its spring-loaded pivoting system, avoiding breakage or removal of the ground foundations.

Easy installation using U-shaped ground fittings and M8 hex safety tamper-proof nuts (supplied).

Post Specifications/dimensions:-

Fabricated from 50 mm diameter mild steel tube, hot dipped galvanised.

Cast aluminium bases/feet
455 mm erected height, 58 mm above ground fully collapsed
850 mm overall length
Weight: 12 kg
Finish: Hot dipped galvanised with twin red vinyl banding.
Minimum required ground clearance: 105 mm

Locking options:-

• Multiple hoops can be keyed differently or alike (identical keys)
• Master suited locks are available, each lock supplied with 3 keys with the Master key sold separately.
• Pad lockable version is available, padlocks can be supplied
• For bolting down only
